Fluke AUX Input Cable for Energy Logger

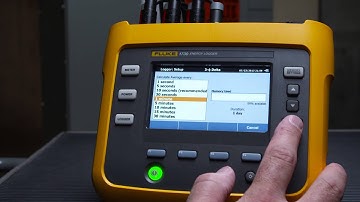

To begin energy logging, start at the meter screen. Select "Change Configuration", and choose "Energy Study" under "Study Type." Now choose "Topology" and select your circuit type from the list. Other settings, such as where the current and voltage transformers are installed, can be selected to ensure all measurements are shown correctly. Now it's time to install the 1730 at the load. Where you install the 1730 will depend on what savings you're looking for. A good place to start is at the building's main service entrance. When installing, ensure the voltage leads go to the correct phases and that the Iflex™ Current Probes match the selection compared to the voltage channels. Once the power is back online, press the "Verify Connection" button. The instrument will let you know if things are correct or show where you may have made a mistake. If a mistake has been made, you can fix it on t
