Description

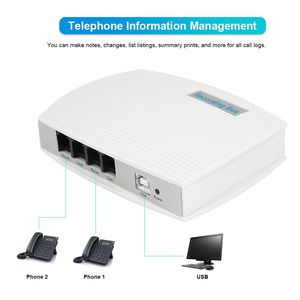

The telephone recording box is a two-way recording system that uses a USB interface to connect to a PC. It has functions such as caller recording, outgoing call recording, call screen, business management, real-time monitoring, and network monitoring. It can be applied to commercial telephone, power dispatch, hotline service telephone, key position telephone, financial securities, public security alarm, security department's monitoring telephone, aviation, railway, transportation dispatch recording and production scheduling recording of various industries. It is especially suitable for personal use with few lines.
Specification:
Number of Channels: 2 channels
Compression Factor: 1/6/8 times compression
Recording Start Mode: Voltage control, voice control, key control
Signal to noise ratio: 60dB
Frequency: 300 ~ 3400HZ(±3dB)
Data Rate: 16 Kbps, 32Kbps, 64kbps/s
Interface Mode: RJ11
Main Call Number: FSK, DTMP
FSK Concoct Mode: Logic 0: 2200Hz±1%, Logic 1: 1200Hz±1%
Calling Monitor: Signal tone, Voice, Polarity reversal
DTMF Code: 0~9, *, #, A, B, C, D
Switching Function: 256 channels direct exchange
Voice File: WAV
Phone Voltage Standard: 40-120V(ringing), 18-48(Idle), 5-17V(Hook off)
Package list:
1 * Recording Box
1 * CD
1 * USB Power Cord
2 * Telephone Wire
Note:
This product is not equipped with a paper manual. After receiving the product, please contact customer service to obtain the electronic version of the operating instructions.
PC Configuration Requirements:
1. For Windows 98 SE2, Windows NT, Windows 2000, Windows 7, Windows XP and other operating systems 2. 800MHz Pentium series CPU or above 3. At least one of the available USB interfaces 4. Memory 256M 5. Hard disk above 80G 6. Speaker
