Description
Selling points of product :
1. Free 8GB memory ;
2. Voice activated ;
3. Recordings save on micro SD card too .
This device is single line voice logger. It can record all the calls over the phone .

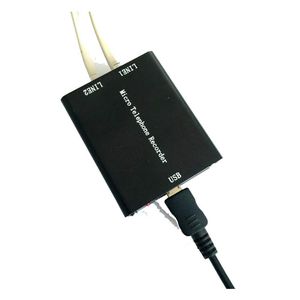

The Telephone recorder has two ports (line1 and line2), one port connects to the telephone main line, and the other port connects to telephone base line port, Connect it to power supply via USB cable, see above diagram
LED light turn on redwhen connected to power supply, the recorder begins to recording the voice when pick up telephone headset, LED light will flashing one time per seconds.
Playback:
Connect the recorder to computerusing the USB cable provided. please wait for few seconds, the computer will install the driver automatic, then the computer will pop up a removable disk logo, Open it up and there will be files for Audio and time.txt,
The recordedfile is saved under the WAV folder, file format is .wav. File format is "year - month - day - hour - minute-second-recording number. Wav"
Setting Date and Time:
Connect it to computer via USB cable,open the U disk, at the root directory to create a file named "time. txt" and edit content: 2014-08-0809:20:00 updated the content and save the files.
Take out the recorder from computer and connect it with power supply, it will updated the date and time, you can records a file
Parameters
Audio Format:WAV Power adapter:5V 1A
Memory:8GB built-in
Bit rate: :32kbps
Interface type:USB
Supporting system : Windows me/2000/xp/2003/vista/win7/win8,Mac 10.4,Linux
Packing content :
1 x recorder ;
1 x lower noise power adapter;
1 x usb cable ;
1 x telephone cable
1. Free 8GB memory ;
2. Voice activated ;
3. Recordings save on micro SD card too .
This device is single line voice logger. It can record all the calls over the phone .
The Telephone recorder has two ports (line1 and line2), one port connects to the telephone main line, and the other port connects to telephone base line port, Connect it to power supply via USB cable, see above diagram
LED light turn on redwhen connected to power supply, the recorder begins to recording the voice when pick up telephone headset, LED light will flashing one time per seconds.
Playback:
Connect the recorder to computerusing the USB cable provided. please wait for few seconds, the computer will install the driver automatic, then the computer will pop up a removable disk logo, Open it up and there will be files for Audio and time.txt,
The recordedfile is saved under the WAV folder, file format is .wav. File format is "year - month - day - hour - minute-second-recording number. Wav"
Setting Date and Time:
Connect it to computer via USB cable,open the U disk, at the root directory to create a file named "time. txt" and edit content: 2014-08-0809:20:00 updated the content and save the files.
Take out the recorder from computer and connect it with power supply, it will updated the date and time, you can records a file
Parameters
Audio Format:WAV Power adapter:5V 1A
Memory:8GB built-in
Bit rate: :32kbps
Interface type:USB
Supporting system : Windows me/2000/xp/2003/vista/win7/win8,Mac 10.4,Linux
Packing content :
1 x recorder ;
1 x lower noise power adapter;
1 x usb cable ;
1 x telephone cable
