Description
CPU :Intel® LGA771 Xeon Processor
Chipset:Intel® G41+ICH7R Chipset
Memory :2* SO DDRIII 1066/1333MHz, Max. up to 8GB
Graphics :Intel® GMA4500 Graphics,support VGA display output
Expansion Slots :1* PCI-E 8X, can be extended Optical interface module/Electrical interface
module:* PCI
LAN:6* Intel® 82574L 10/100/1000Mbps Ethernet
Support Wake-on-LAN and PXE function,LAN1~4 supports 2 groups of BYPASS function.
Storage:3* SATAII 3Gbps, support RAID
1* MSATA, support SSD
1* IDE
1* CF card
Rear I/O:1* COM(CISCO standard interface)
2* USB 2.0
6* RJ-45 LAN
1* POWER
1* LED1(POWERLED/HDDLED)
Internal I/O:1* JVGA 2*5pin
1* LAN_LED 2*13pin
4* USB 2.0
1* COM
1* FP1 (2*5pin Front panel buttons and LED connected)
1* PS/2
Fun interface:1* CPUFAN 4pin 1* SYSFAN 3pin
GPIO:1* GPIO (Support 4-way GPIO function)
BIOS:AMI 8MB DPI Flash ROM
Watchdog:Support hardware reset function (L256, 0~255 seconds)
Power Input:ATX 24pin Power supply
Operating Temp.:-10℃~60℃
Storage Temp. :-20℃~70℃
Humidity :0%-95%(relative humidity; non-condensing)
Chipset:Intel® G41+ICH7R Chipset
Memory :2* SO DDRIII 1066/1333MHz, Max. up to 8GB
Graphics :Intel® GMA4500 Graphics,support VGA display output
Expansion Slots :1* PCI-E 8X, can be extended Optical interface module/Electrical interface
module:* PCI
LAN:6* Intel® 82574L 10/100/1000Mbps Ethernet
Support Wake-on-LAN and PXE function,LAN1~4 supports 2 groups of BYPASS function.
Storage:3* SATAII 3Gbps, support RAID
1* MSATA, support SSD
1* IDE
1* CF card
Rear I/O:1* COM(CISCO standard interface)
2* USB 2.0
6* RJ-45 LAN
1* POWER
1* LED1(POWERLED/HDDLED)
Internal I/O:1* JVGA 2*5pin
1* LAN_LED 2*13pin
4* USB 2.0
1* COM
1* FP1 (2*5pin Front panel buttons and LED connected)
1* PS/2
Fun interface:1* CPUFAN 4pin 1* SYSFAN 3pin
GPIO:1* GPIO (Support 4-way GPIO function)
BIOS:AMI 8MB DPI Flash ROM
Watchdog:Support hardware reset function (L256, 0~255 seconds)
Power Input:ATX 24pin Power supply
Operating Temp.:-10℃~60℃
Storage Temp. :-20℃~70℃
Humidity :0%-95%(relative humidity; non-condensing)

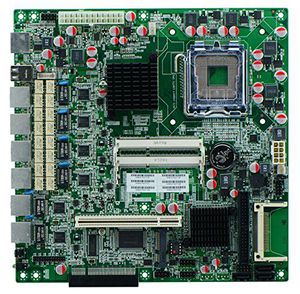

G41XE motherboard with Intel G41+ICH7R Chipset,6 lan
