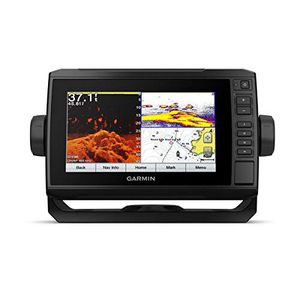

Garmin ECHOMAP Plus 74CV, US Offshore G3 w/GT23, 010-01894-05

okay today we're gonna do a garmin install on the flat boat we got a uhd 74 cv unit seven inch screen and we've got a 3m stern pad to mount the transducer to on the boat all right first thing we're going to do is bolt the transducer bracket to its base okay for now i'm just gonna snug them up then we get our transducer bracket so for this you put the flat washer in the rubber washer come through the left side i'm sorry right to left [Applause] and you put the nut on it's a permalock nut and it had loctite on the thread so do the same thing here we'll just snug this for now and figure out which side of the boat we want to mount it on and how we want to run our cable all right the next thing we're going to do is figure out which side of the boat we want to mount it on with this 3m pad so since our propeller turns clockwise we want to mount it on the starboard side of the boat it's got to
