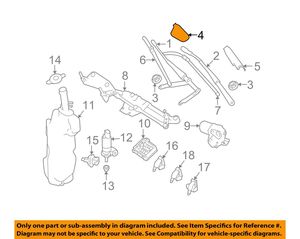

Genuine Mercedes-Benz Wiper Arm Cap 251-824-01-49

[Music] while there are two wiper blades on the mercedes w204 there are three arms to work them the driver side wiper uses a single arm yellow arrow while the passenger side has two arms to work the blade mechanism red arrows before you remove the arms take note of the dot hidden in the silk screen area of the lower windshield red arrow the wipers must be aligned within an inch of this dot yellow lines when in the off position remove the plastic cover over the driver's side arm red arrow it just snaps off use a trim removal tool and pry the caps off the two arms for the passenger side red arrows use a 16 millimeter socket holding the arm in place loosen the nut red arrow carefully working around the windshield and the hood as you don't want to damage them do the same to the two nuts on the passenger side sometimes the arms can be wiggled and pulled off the mechanism on our project car w
