Description

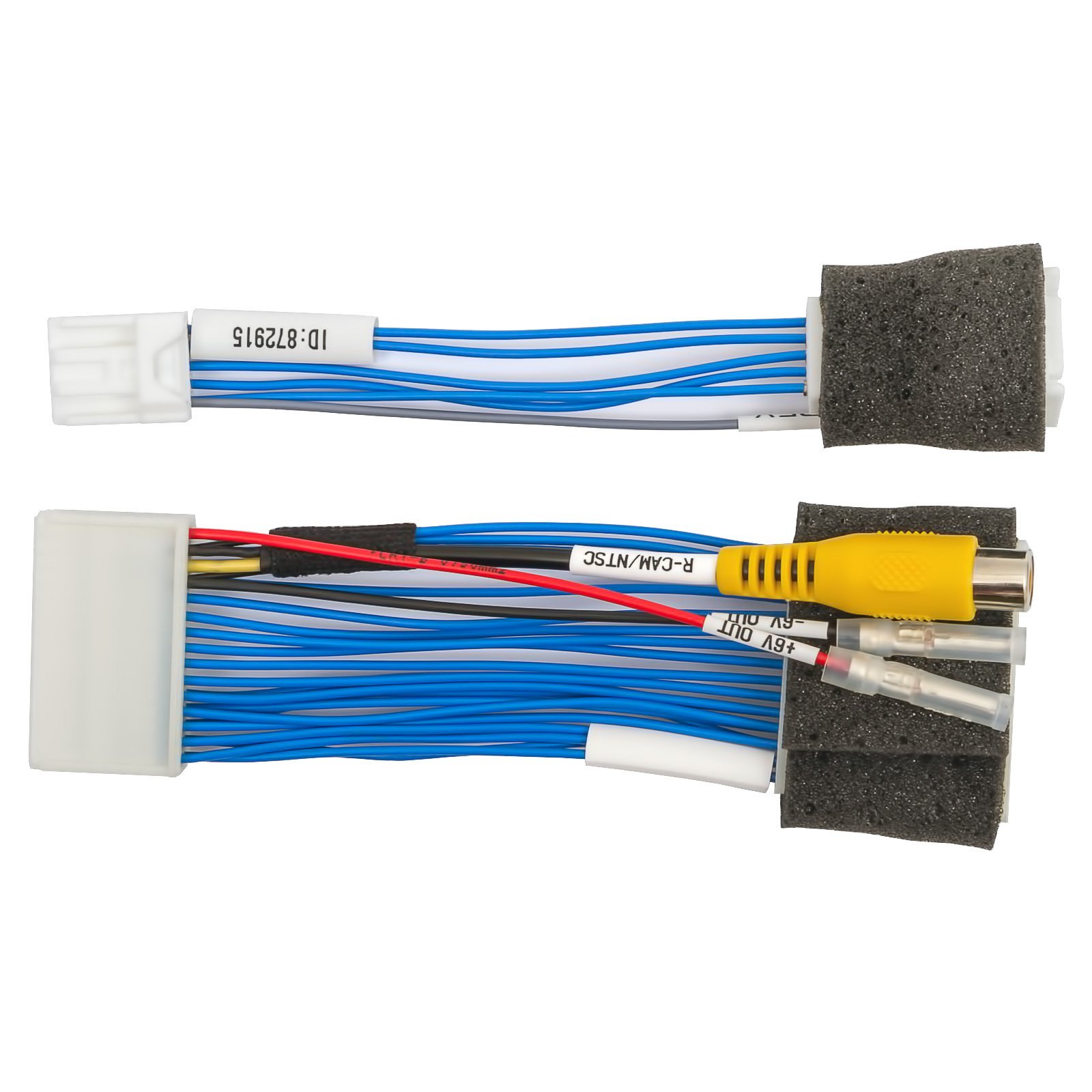

Cable for Plug&Play rear view camera connection in Toyota with MFD GEN5/GEN6 displays with DVD navigation without damaging car wires. Image from the camera will be automatically displayed on the screen when reversing. The device is connected to the 24 pin socket. After connection all OEM functions which work using this socket are preserved. A special cable for rear view camera functionality activation is included in the package content. It's designed specifically for cars where rear view camera functionality was not included by the manufacturer (rear view camera activation signal was not implemented in the head unit). Note! The additionally installed rear view camera should be powered from ACC line (first turn of the key), otherwise the camera input will not be active. Depending on the type of connected camera, namely on the voltage required for the camera, you can use input voltage +6 V, which the monitor produces. In case the camera requires more than +6 V, connect its power to ACC line. Only cameras in NTSC format are supported.

Compatibility
US Denso GEN5 DVD Navi
2006-2009: 4Runner 2DIN; -2010 Sienna 2DIN; -2012 2DIN 26028/26023/E7007/E7008/E7009
2007-2009 Camry, Camry Hybrid E7011/E7012; Solara, Tundra 2DIN, E7013
2008-2009 Sequoia E7013
2011-2012 Highlander, Highlander Hybrid E7014/E7016, E7015/E7017
US Denso GEN6 DVD Navi
2009-2012 Venza E7021
2010-2011 Camry, Camry Hybrid E7024; Prius E7022; -2012 Avalon E7031; Sequoia E7026; -2013 4Runner E7028/E7029 Tundra E7026
2011-2012 Highlander, Highlander Hybrid E7033; -2014 Sienna E7027
EU, Asia - Aisin GEN5 DVD Navi
2006-2009 Verso, Yaris 2DIN; -2010 Camry B9007, RAV4 B9004/2DIN, Hiace, Hilux, LC150, Previa 2DIN; -2011 Auris B9005/B9006, Avensis 2DIN, Corola, Corola Verso B9005/2DIN; -2012 2DIN B9008/B9013/B9014
Toyota 2DIN are factory car radios with unified 200×100 mm dimensions. The model is indicated on the car radio panel.

Germes Lab. Car Rear View Backup Reverse Camera Connection Cable for Toyota MFD GEN5/GEN6 DVD Navi 2DIN Monitors

Get price

Current Price

$23

Average

$17.04

Min Price

$9.09

Max Price

$23

Price dynamics

26%

Description

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

hello and welcome to car solutions online store in this video I would like to show you how to connect a rear-view camera using a cable with plug-and-play connection this cable is designed for Toyota and Lexus cars you can find a more detailed comparability list on the product page so let's begin we have OAM Toyota and Lexus monitors here or as they are called by the manufacturer MFDs multifunctional displays this particular cable is designed for MFD of the fifth generation these can be both monitors with navigation that have map desk and nav buttons and without navigation however some monitors look quite like for example a monitor of the fourth generation can look very similar to this one which actually is a fifth generation MFD in this video i will show you how to distinguish which is which and how to connect the camera so as I have mentioned before this cable offers plug-and-play conn
