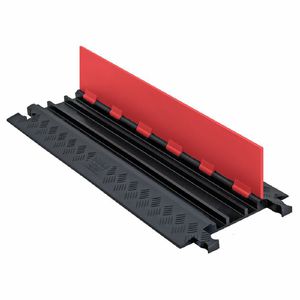

The Guard Dog GD3X75-ST-O/B polyurethane heavy duty 3 channel low profile cable protector has open top channels covered by a lid with reinforced fiberglass hinges to protect cables, electrical cords, and hoses with an outside diameter of up to .75"/19 mm from wear and compression caused by vehicular traffic (up to 34,000 lb./15,422 kg per axle) while helping to reduce the danger posed by loose cables in the path of pedestrians. Its low profile of 1.25"/31.8 mm and contrasting orange and black colors help reduce the risk of pedestrian tripping accidents. The cable protector has two dog-bone shaped connectors on each side (two male connectors on one side and two female connectors on the other) for interlocking multiple connectors to extend coverage across wide passages. This cable protector is manufactured using a process called Reaction Injection Molding (RIM), which results in a consistency beneficial when connecting multiple protectors. The polyurethane used is nonconductive, UV-stabilized, and resistant to damage from abrasion, oils, and solvents. The surface of the ramps and lid have a patented five-bar tread pattern for traction, and molded safety symbols that meet American National Standards Institute (ANSI) Z535.3-1991 standards. This cable protector is suitable for the protection of valuable electrical and data cables used in indoor and outdoor stage, studio, and broadcast applications. When used according to manufacturer’s recommendations, this product is covered by a one-year warranty against defects in workmanship or materials.
Specifications
| Cable capacity | 3 channels | ||||||
| Cable channel dimensions | .75 x 1.25 inches/19 x 31.8 mm (center channel is 2"/50.8 mm wide) | ||||||
| Maximum load capacity at 70 degrees F (21 degrees C) | 17,000 lb./7,711 kg Guard Dog GD3X75-ST-O/B Polyurethane Heavy Duty 3 Channel Low Profile Cable Protector with Standard Ramp, Orange Lid with Black Ramp, 36" Length, 13.8" Width, 1.25" HeightCurrent Price $127.99 Average $127.96 Min Price $104.09 Max Price $157.59 Price dynamics 0% Description The Guard Dog GD3X75-ST-O/B polyurethane heavy duty 3 channel low profile cable protector has open top channels covered by a lid with reinforced fiberglass hinges to protect cables, electrical cords, and hoses with an outside diameter of up to .75"/19 mm from wear and compression caused by vehicular traffic (up to 34,000 lb./15,422 kg per axle) while helping to reduce the danger posed by loose cables in the path of pedestrians. Its low profile of 1.25"/31.8 mm and contrasting orange and black colors help reduce the risk of pedestrian tripping accidents. The cable protector has two dog-bone shaped connectors on each side (two male connectors on one side and two female connectors on the other) for interlocking multiple connectors to extend coverage across wide passages. This cable protector is manufactured using a process called Reaction Injection Molding (RIM), which results in a consistency beneficial when connecting multiple protectors. The polyurethane used is nonconductive, UV-stabilized, and resistant to damage from abrasion, oils, and solvents. The surface of the ramps and lid have a patented five-bar tread pattern for traction, and molded safety symbols that meet American National Standards Institute (ANSI) Z535.3-1991 standards. This cable protector is suitable for the protection of valuable electrical and data cables used in indoor and outdoor stage, studio, and broadcast applications. When used according to manufacturer’s recommendations, this product is covered by a one-year warranty against defects in workmanship or materials. Specifications
|
