Camera
Image Sensor 1/3" 2Megapixel CMOS
Effective Pixels 1920(H)×1080(V)
Electronic Shutter 1/3s~1/100,000s
Video Frame Rate 1920×1080@25 fps?1920×1080@30 fps?1280×720@25 fps?1280×720@30 fps?1280×720@50 fps?1280×720@60 fps
Synchronization Internal
Min. Illumination 0.05Lux@F1.2(0Lux IR LED on)
Video Output 1-channel BNC HDCVI high definition video output/ CVBS standard definition
video output (Can switch)
Camera Features
Max. IR LEDs Length 20m, Smart IR
Day/Night Auto(ICR)/B&W/Color
Noise Reduction 2D/3D
OSD Menu Support
Lens
Focal length 3.6mm
Mount Type M12
General
Power Supply DC12V±10%
Power Consumption Max 4.5W
Working Environment -30°C~+60°C/ Less than 95%RH (no condensation)
Transmission Distance Over 300m via 75-3 coaxial cable
Ingress Protection IP66
Dimensions(W×D×H) Φ65mm x154.7mm
Weight 380g

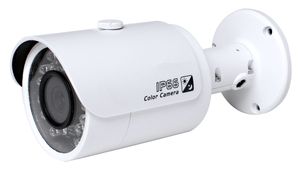

HAC-HFW2200S 2 Megapixel 1080P Water-Proof HDCVI IR Bullet Camera
Camera
Image Sensor 1/3" 2Megapixel CMOS
Effective Pixels 1920(H)×1080(V)
Electronic Shutter 1/3s~1/100,000s
Video Frame Rate 1920×1080@25 fps?1920×1080@30 fps?1280×720@25 fps?1280×720@30 fps?1280×720@50 fps?1280×720@60 fps
Synchronization Internal
Min. Illumination 0.05Lux@F1.2(0Lux IR LED on)
Video Output 1-channel BNC HDCVI high definition video output/ CVBS standard definition
video output (Can switch)
Camera Features
Max. IR LEDs Length 20m, Smart IR
Day/Night Auto(ICR)/B&W/Color
Noise Reduction 2D/3D
OSD Menu Support
Lens
Focal length 3.6mm
Mount Type M12
General
Power Supply DC12V±10%
Power Consumption Max 4.5W
Working Environment -30°C~+60°C/ Less than 95%RH (no condensation)
Transmission Distance Over 300m via 75-3 coaxial cable
Ingress Protection IP66
Dimensions(W×D×H) Φ65mm x154.7mm
Weight 380g
