Description
Standards: UL 508 Type 1, 2, 3, 4, 4X, 12 and 13 CSA Type 1, 2, 3, 4, 4X, 12 and 13 Complies with: NEMA Type 1, 2, 3, 4, 4X,12 and 13 IEC 60529, IP66Construction: Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled. Enhanced UV inhibitors protect against outdoor weathering. Standard JIC sizes under 18 x 16. Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included. Stainless steel draw type snap latch door fasteners. Door fasteners include a provision for padlocking. Enclosures are available with bonded polycarbonate viewing windows. Molded hinge with stainless steel pin. Captive oil resistant gasket provides a positive seal. Available with Polycarbonate flange or foot mount brackets for multi-directional mounting. Operating temperatures between 130degrees-C and -40degrees-C (266degrees-F to -40degrees-F). Impact index of 6.78J (5 ft/lb).Finish: Fiberglass polyester material has a gray finish. Optional inner panels are available in white powder coated finished steel, unfinished aluminum, or Fiberglass.Accessories: Painted steel inner panels PJ / PJU swing panel Unfinished aluminum inner panels Fiberglass inner panels Terminal Kit assemblies

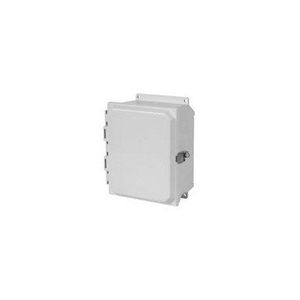

Hammond Manufacturing PJU181610LF NONMET HNG SNAPL FLAN
Price is below average
Current Price
$226.38
Average
$248.01
Min Price
$186.51
Max Price
$295.43
Price dynamics
9%
Description
Standards: UL 508 Type 1, 2, 3, 4, 4X, 12 and 13 CSA Type 1, 2, 3, 4, 4X, 12 and 13 Complies with: NEMA Type 1, 2, 3, 4, 4X,12 and 13 IEC 60529, IP66Construction: Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled. Enhanced UV inhibitors protect against outdoor weathering. Standard JIC sizes under 18 x 16. Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included. Stainless steel draw type snap latch door fasteners. Door fasteners include a provision for padlocking. Enclosures are available with bonded polycarbonate viewing windows. Molded hinge with stainless steel pin. Captive oil resistant gasket provides a positive seal. Available with Polycarbonate flange or foot mount brackets for multi-directional mounting. Operating temperatures between 130degrees-C and -40degrees-C (266degrees-F to -40degrees-F). Impact index of 6.78J (5 ft/lb).Finish: Fiberglass polyester material has a gray finish. Optional inner panels are available in white powder coated finished steel, unfinished aluminum, or Fiberglass.Accessories: Painted steel inner panels PJ / PJU swing panel Unfinished aluminum inner panels Fiberglass inner panels Terminal Kit assemblies
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
