Description
Noting:1:PC Support : Windows XP/7/8/10 system
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3:TF card storage is only for HDMI output. USB output will be storage in PC.
Feature:
High Quality, High Resolution, Clear Images
Model: Camera with HDMI USB2.0 two output
Image format: JPG
Image resolution: 4608*3456 (for TF Card) 1920 *1080 @ 60FPS(for TF card);1920x1080 (for USB)
Video format: MP4(for TF card)
Video recorder: 1920 *1080 @ 60fps (for TF Card)
USB Video resolution: 1920 *1080 @ 30FPS
Specification:
Image sensor: 16 megapixel Panasonic sensor 1/2.3 inch
Effective pixel: 16 megapixel
Pixel size: 1.43*1.43um
Frame rate: 60fps
Definition: FULL HD
White balance: Auto/manual
Digital magnification: 5 times digital zoom
Brightness control: Auto/manual
Color: R/G/B adjustable
Freeze: Support
OSD: English/Chinese/French/Spanish/Portuguese
Film and record: Support
Cross cursor: Support multi-color, size adjustable
Transverse and vertical line: Support multi-color, 5 pcs of transverse lines/vertical lines, moveable
SNR: Support
TF card interface: Max 64G
HDMI interface: Standard HDMI output (Type A)
Lens: C
USB interface : Standard USB 2.0 interface (Type B)
Objective Lens: continual zoom 0.7-4.5X,
zoom ratio: 6.5:1
eyepiece lens:0.5X
amplification range:about 10X-180X on 21 inch screen
working distance: 95-115mm
Package Content:
1 x Microscope Camera with power supply
1 x Software DISC
1 x Remote Control
1 x 180X C-mount Lens
1 x 144LED Light with power supply
1 x Camera Stand
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3:TF card storage is only for HDMI output. USB output will be storage in PC.
Feature:
High Quality, High Resolution, Clear Images
Model: Camera with HDMI USB2.0 two output
Image format: JPG
Image resolution: 4608*3456 (for TF Card) 1920 *1080 @ 60FPS(for TF card);1920x1080 (for USB)
Video format: MP4(for TF card)
Video recorder: 1920 *1080 @ 60fps (for TF Card)
USB Video resolution: 1920 *1080 @ 30FPS
Specification:
Image sensor: 16 megapixel Panasonic sensor 1/2.3 inch
Effective pixel: 16 megapixel
Pixel size: 1.43*1.43um
Frame rate: 60fps
Definition: FULL HD
White balance: Auto/manual
Digital magnification: 5 times digital zoom
Brightness control: Auto/manual
Color: R/G/B adjustable
Freeze: Support
OSD: English/Chinese/French/Spanish/Portuguese
Film and record: Support
Cross cursor: Support multi-color, size adjustable
Transverse and vertical line: Support multi-color, 5 pcs of transverse lines/vertical lines, moveable
SNR: Support
TF card interface: Max 64G
HDMI interface: Standard HDMI output (Type A)
Lens: C
USB interface : Standard USB 2.0 interface (Type B)
Objective Lens: continual zoom 0.7-4.5X,
zoom ratio: 6.5:1
eyepiece lens:0.5X
amplification range:about 10X-180X on 21 inch screen
working distance: 95-115mm
Package Content:
1 x Microscope Camera with power supply
1 x Software DISC
1 x Remote Control
1 x 180X C-mount Lens
1 x 144LED Light with power supply
1 x Camera Stand

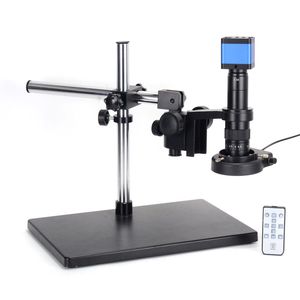

HAYEAR 16MP HDMI Microscope Camera Kit for Industry Lab PCB USB Output TF Card Video Recorder +180X C-Mount Lens + Big Stereo Stand +144 LED Light
