Description
Noting:
1:PC Support : Windows XP/7/8/10 system
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3:When use USB connection, please make sure no TF card in the camera.
Specification:
Image sensor:34 megapixel Panasonic CMOS sensor 1/2.33 inch
Effective pixel:34 megapixel
Pixel size:1.335μm × 1.335μm
Frame rate:60fps
Definition: FULL HD
Housing: metal
Lens :C/CS
Video format: MP4
Digital Zoom: Support
Brightness control: Auto/manual
Color: R/G/B adjustable
Film and record: Support
Cross cursor: Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, movable
Different color,5 horizontal line , 5 vertical line, any positions
TF card interface: Max 64G
HDMI interface: Standard HDMI output (Type A)
USB interface: Standard usb2.0 interface (Type B)
Input Voltage: DC 12V
100X C-MOUNT Lens:
Magnification Power by 0.12 - 2X (about 8 - 100X on the display)
Work distance:55m-200mm
Visual field :2.4mm-32mm
Size: 115mm(L) * 40mm(DIA)
Weight: 210g
8 Inch Monitor:
LCD Type: TFT LED
Physical Resolution: 800 × 600
Display Ratio: 4: 3
Contrast Ratio: 300: 1
Field Frequency: 50Hz, 60Hz, 70Hz
Signal Interface: AV × 1, BNC × 1, VGA × 1, HDMI × 1
Color Format: PAL / NTSC / SECAM
Package Including:
1 x Microscope Camera
1 x 12V/1A Power supply
1 x USB line
1 x 100X Zoom C-mount Lens
1 x Camera Stand
1 x 40-LED Ring Light with Power Adapter
1 x 8 inch Monitor
1:PC Support : Windows XP/7/8/10 system
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3:When use USB connection, please make sure no TF card in the camera.
Specification:
Image sensor:34 megapixel Panasonic CMOS sensor 1/2.33 inch
Effective pixel:34 megapixel
Pixel size:1.335μm × 1.335μm
Frame rate:60fps
Definition: FULL HD
Housing: metal
Lens :C/CS
Video format: MP4
Digital Zoom: Support
Brightness control: Auto/manual
Color: R/G/B adjustable
Film and record: Support
Cross cursor: Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, movable
Different color,5 horizontal line , 5 vertical line, any positions
TF card interface: Max 64G
HDMI interface: Standard HDMI output (Type A)
USB interface: Standard usb2.0 interface (Type B)
Input Voltage: DC 12V
100X C-MOUNT Lens:
Magnification Power by 0.12 - 2X (about 8 - 100X on the display)
Work distance:55m-200mm
Visual field :2.4mm-32mm
Size: 115mm(L) * 40mm(DIA)
Weight: 210g
8 Inch Monitor:
LCD Type: TFT LED
Physical Resolution: 800 × 600
Display Ratio: 4: 3
Contrast Ratio: 300: 1
Field Frequency: 50Hz, 60Hz, 70Hz
Signal Interface: AV × 1, BNC × 1, VGA × 1, HDMI × 1
Color Format: PAL / NTSC / SECAM
Package Including:
1 x Microscope Camera
1 x 12V/1A Power supply
1 x USB line
1 x 100X Zoom C-mount Lens
1 x Camera Stand
1 x 40-LED Ring Light with Power Adapter
1 x 8 inch Monitor

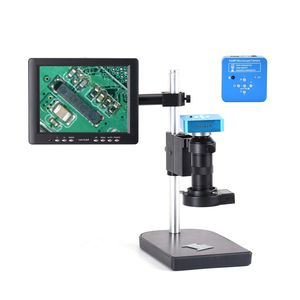

HAYEAR 34MP 1080P 60FPS 2K Full HD HDMI USB C-Mount Electronic Industry Microscope Camera Kit Digital Magnifier for PCB Repair + 100X C-Mount Lens+8" HD LCD Monitor + 40 LED Illumination Lamp
