Description
Noting:
1:PC Support : Windows XP/7/8/10 system
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3:When use USB connection, please make sure no TF card in the camera.
Specification:
Image sensor:34 megapixel Panasonic CMOS sensor 1/2.33 inch
Effective pixel:34 megapixel
Pixel size:1.335μm × 1.335μm
Frame rate:60fps
Definition: FULL HD
Housing: metal
Lens :C/CS
Video format: MP4
Digital Zoom: Support
Brightness control: Auto/manual
Color: R/G/B adjustable
Film and record: Support
Cross cursor: Support multi-color, size adjustable
Transverse and vertical line:Support multi-color, 5 pcs of transverse lines/vertical lines, movable
TF card interface: Max 64G
HDMI interface: Standard HDMI output (Type A)
USB interface: Standard usb2.0 interface (Type B)
Input Voltage: DC 12V
zoom c-mount lens
magnification: 0.11X-2X ( about 5x-150x on the 21 inch display )
visual field: 3.1mm-66mm
working distance: 55mm-68000mm
Package Including:
1 x Microscope Camera with power supply
1 x USB line
1 x Software DISC
1 x Remote Control
1 x C-mount Lens
1 x Camera Stand with LED Lights
1:PC Support : Windows XP/7/8/10 system
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3:When use USB connection, please make sure no TF card in the camera.
Specification:
Image sensor:34 megapixel Panasonic CMOS sensor 1/2.33 inch
Effective pixel:34 megapixel
Pixel size:1.335μm × 1.335μm
Frame rate:60fps
Definition: FULL HD
Housing: metal
Lens :C/CS
Video format: MP4
Digital Zoom: Support
Brightness control: Auto/manual
Color: R/G/B adjustable
Film and record: Support
Cross cursor: Support multi-color, size adjustable
Transverse and vertical line:Support multi-color, 5 pcs of transverse lines/vertical lines, movable
TF card interface: Max 64G
HDMI interface: Standard HDMI output (Type A)
USB interface: Standard usb2.0 interface (Type B)
Input Voltage: DC 12V
zoom c-mount lens
magnification: 0.11X-2X ( about 5x-150x on the 21 inch display )
visual field: 3.1mm-66mm
working distance: 55mm-68000mm
Package Including:
1 x Microscope Camera with power supply
1 x USB line
1 x Software DISC
1 x Remote Control
1 x C-mount Lens
1 x Camera Stand with LED Lights

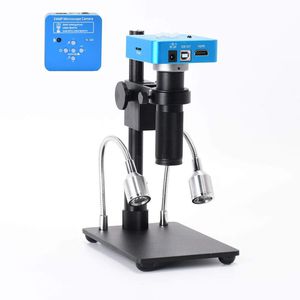

HAYEAR 34MP 2K 1080P 60FPS Full HD HDMI USB Electronic Digital Video Soldering Microscope Camera Magnifier +150X Zoom C-Mount Lens + Adjustable Illumination for Cell Phone PCB Repairing Portable
Price is below average
Current Price
$214.99
Average
$219.34
Min Price
$199.99
Max Price
$238.26
Price dynamics
2%
Description
Noting:
1:PC Support : Windows XP/7/8/10 system
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3:When use USB connection, please make sure no TF card in the camera.
Specification:
Image sensor:34 megapixel Panasonic CMOS sensor 1/2.33 inch
Effective pixel:34 megapixel
Pixel size:1.335μm × 1.335μm
Frame rate:60fps
Definition: FULL HD
Housing: metal
Lens :C/CS
Video format: MP4
Digital Zoom: Support
Brightness control: Auto/manual
Color: R/G/B adjustable
Film and record: Support
Cross cursor: Support multi-color, size adjustable
Transverse and vertical line:Support multi-color, 5 pcs of transverse lines/vertical lines, movable
TF card interface: Max 64G
HDMI interface: Standard HDMI output (Type A)
USB interface: Standard usb2.0 interface (Type B)
Input Voltage: DC 12V
zoom c-mount lens
magnification: 0.11X-2X ( about 5x-150x on the 21 inch display )
visual field: 3.1mm-66mm
working distance: 55mm-68000mm
Package Including:
1 x Microscope Camera with power supply
1 x USB line
1 x Software DISC
1 x Remote Control
1 x C-mount Lens
1 x Camera Stand with LED Lights
1:PC Support : Windows XP/7/8/10 system
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3:When use USB connection, please make sure no TF card in the camera.
Specification:
Image sensor:34 megapixel Panasonic CMOS sensor 1/2.33 inch
Effective pixel:34 megapixel
Pixel size:1.335μm × 1.335μm
Frame rate:60fps
Definition: FULL HD
Housing: metal
Lens :C/CS
Video format: MP4
Digital Zoom: Support
Brightness control: Auto/manual
Color: R/G/B adjustable
Film and record: Support
Cross cursor: Support multi-color, size adjustable
Transverse and vertical line:Support multi-color, 5 pcs of transverse lines/vertical lines, movable
TF card interface: Max 64G
HDMI interface: Standard HDMI output (Type A)
USB interface: Standard usb2.0 interface (Type B)
Input Voltage: DC 12V
zoom c-mount lens
magnification: 0.11X-2X ( about 5x-150x on the 21 inch display )
visual field: 3.1mm-66mm
working distance: 55mm-68000mm
Package Including:
1 x Microscope Camera with power supply
1 x USB line
1 x Software DISC
1 x Remote Control
1 x C-mount Lens
1 x Camera Stand with LED Lights
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
