1. Introduction

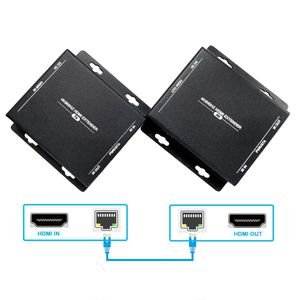

The extender provides extension of HDMI signals long distances up to 70M over a single CAT6 cable. It supports high resolution up to 3840*2160@60Hz and Infrared signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

2. Features

（1）Transmits HDMI video and audio signals up to 70M over a single CAT6 cable;

（2）Support video resolution up to 3840*2160@60Hz signal;

（3）Supports screen formats YUV 4:44: and RGB 4:4:4;

（4）Compliance with HDMI 2.0 and HDCP 2.2 standard;

（5）Support EDID penetration function, can match many kind display device;

（6）Support 20K-60KHz Bidirectional infrared signal transmission;

（7）Standard Ethernet IEEE-568B connection for easy installation;

（8）High compatibility, can auto-match source and display device;

（9）Built-in ESD protection system;

（10）Built-in automatic adjustment system make the image smooth, clear and stable;

（11）Simple to install, plug and play;

3. Specifications:

(1)   Maximum pixel : 340MHz

(2)   Maximum data rate: 18Gbps

(3)   Maximum resolution: 3840*2160@60Hz

(4)   Connector:HDMI- A

(5)   Impedance:100Ω;

(6)   IR Interface: 3.5mm earphone seat

(7)   IR Signal direction: Bidirectional

(8)    IR frequency: 20k-60kHz

(9)   UTP Interface:RJ45

(10) UTP Transmission distance: CAT6 - upto 70M at 4K@60Hz

4. Other

(1)   Power supply: DC 5V

(2)   Power dissipation: MAX 3W

(3)   Temperature Operating: -5℃ ~ +70℃

(4)   Humidity Operating: 5% ~ 90%

(5)   Dimension: 78*72*19mm

(6)   The warranty: 1 year free warrant
