Description
Flash Target: Omnibus F4
Features:
3-layer PCB board
3 ways of Current Shunt
Single circuit current only pass single layer.
to protect esc board to avoid overheat and overcurrent.
Support 2-6S Lipo battery
Support 22xx,23xx,24xx series motor
Suitable for Narrow arm frame Drone
Suitable for 5-7 inches quad
Specifications:
Chip: CPU STM32F405RGT6 , dual open 8K, MPU 6000-SPI
BEC output: 5V/3A
Direct welding ESC PDB
Built-in current sensor
Input voltage: 2-6S Lipo
Board thickness: 1.6MM
Black box: FLASH 16M, large capacity storage
Built-in BETAFLIGHT OSD to achieve remote control PID parameters
copper foil thickness: 3OZ * 6
Maximum current: 300A
Hole mounting size: M3 30.5 * 30.5mm
Buzzer / programming LED / voltage monitoring / BLHELI-S ESC programming
Support SBUS / PPM / DSMX and other mainstream mainstream receiver
Weight: 11.9g
Package Contents:
1x F4 flame V2 flight controller
Features:
3-layer PCB board
3 ways of Current Shunt
Single circuit current only pass single layer.
to protect esc board to avoid overheat and overcurrent.
Support 2-6S Lipo battery
Support 22xx,23xx,24xx series motor
Suitable for Narrow arm frame Drone
Suitable for 5-7 inches quad
Specifications:
Chip: CPU STM32F405RGT6 , dual open 8K, MPU 6000-SPI
BEC output: 5V/3A
Direct welding ESC PDB
Built-in current sensor
Input voltage: 2-6S Lipo
Board thickness: 1.6MM
Black box: FLASH 16M, large capacity storage
Built-in BETAFLIGHT OSD to achieve remote control PID parameters
copper foil thickness: 3OZ * 6
Maximum current: 300A
Hole mounting size: M3 30.5 * 30.5mm
Buzzer / programming LED / voltage monitoring / BLHELI-S ESC programming
Support SBUS / PPM / DSMX and other mainstream mainstream receiver
Weight: 11.9g
Package Contents:
1x F4 flame V2 flight controller

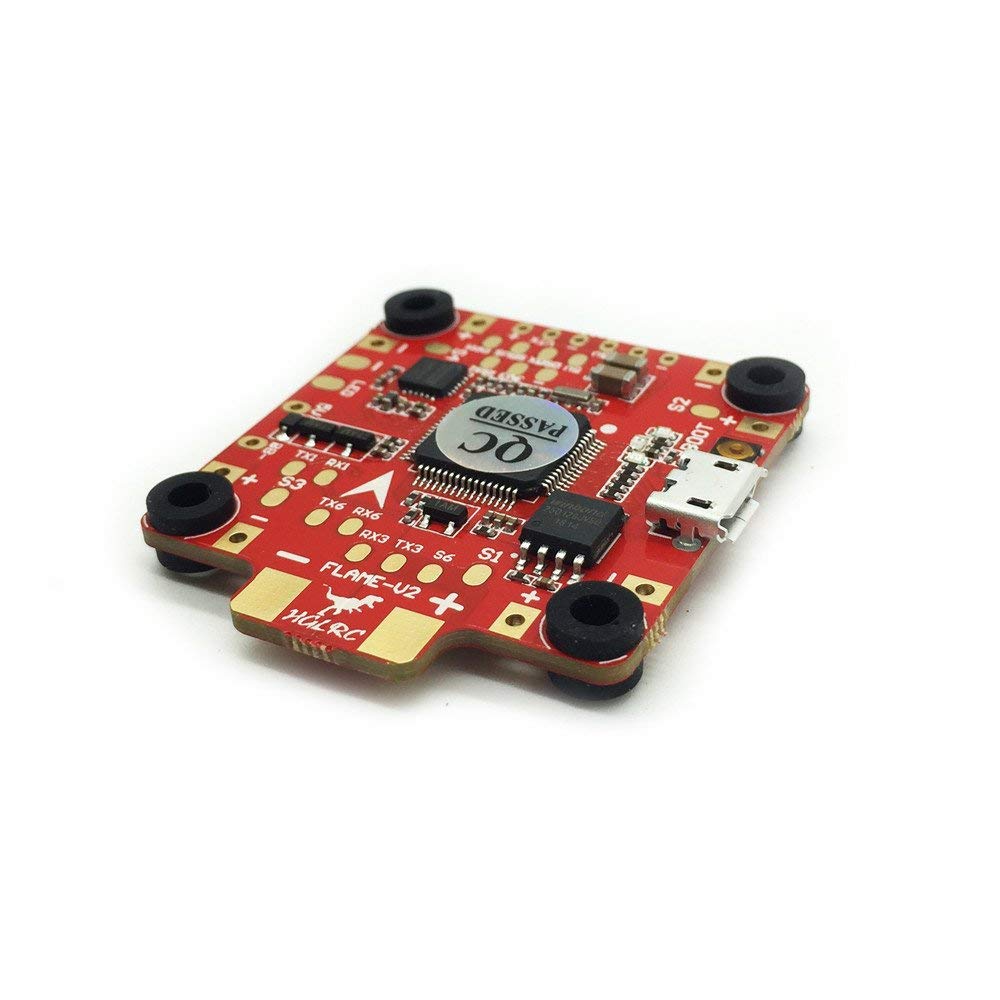

HGLRC F4 Flame V2 Drone Flight Controller with OSD 5V BEC 30.5x30.5mm
