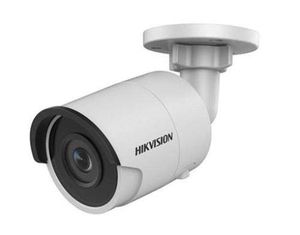

Camera
Image Sensor: 1/2.5" Progressive Scan CMOS
Signal System: PAL/NTSC
Lens: 2.8 mm, 102° horizontal field of view
Day& Night: IR cut filter with auto switch
Compression Standard
Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate: 32Kbps~16Mbps
Max. Image Resolution: 3840 × 2160
Image Enhancement: BLC/3D DNR/BLC
Image Settings: Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
ROI: Support 1 fixed region for main stream and sub stream separately Day/Night Switch: Day/Night/Auto/Schedule
Network
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General Function: One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility: ONVIF (Profile S, Profile G),ISAPI
Interface
Communication Interface: 1 RJ45 10M / 100M Ethernet interface
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Smart Feature-set
Behavior Analysis: Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection: Cross a pre-defined virtual line
Intrusion Detection: Enter and loiter in a pre-defined virtual region
Unattended Baggage: Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal: Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections: Scene change detection
Recognition: Face Detection
General
Operating Conditions:|-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Power Supply:|12 VDC ± 25%, PoE (802.3af Class3)
