Camera
Image Sensor:|1/2.5" Progressive Scan CMOS
Min. Illumination:|Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR
Day& Night:|IR cut filter with auto switch
Compression Standard
Video Compression:|H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate:|32Kbps~16Mbps
Max. Image Resolution:|3840 × 2160
Frame Rate:|50Hz: 20 fps (3840 × 2160), 25 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (3840 × 2160), 30 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720)
Image Enhancement:|BLC/3D DNR
Image Settings:|Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
ROI:|Support 1 fixed region for each stream
Day/Night Switch:|Auto/Scheduled
Network
Protocols:|TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General Function:|One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility:|ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Communication Interface:|1 RJ45 10M / 100M Ethernet interface
Smart Feature-set
Behavior Analysis:|Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Intrusion Detection:|Enter and loiter in a pre-defined virtual region
Unattended Baggage:|Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal:|Objects removed from the pre-defined region, such as the exhibits on display.
Recognition:|Face Detection
General
Operating Conditions:|-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Power Supply:|12 VDC ± 25%, PoE (802.3af Class3)

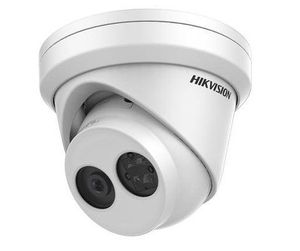

Hikvision 8MP(4K) IR Fixed Turret Network Camera DS-2CD2385FWD-I Outdoor Night Version IP67 ONVIF H.265 2.8mm Lens IP Camera English Version
Camera
Image Sensor:|1/2.5" Progressive Scan CMOS
Min. Illumination:|Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR
Day& Night:|IR cut filter with auto switch
Compression Standard
Video Compression:|H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate:|32Kbps~16Mbps
Max. Image Resolution:|3840 × 2160
Frame Rate:|50Hz: 20 fps (3840 × 2160), 25 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (3840 × 2160), 30 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720)
Image Enhancement:|BLC/3D DNR
Image Settings:|Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
ROI:|Support 1 fixed region for each stream
Day/Night Switch:|Auto/Scheduled
Network
Protocols:|TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General Function:|One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility:|ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Communication Interface:|1 RJ45 10M / 100M Ethernet interface
Smart Feature-set
Behavior Analysis:|Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Intrusion Detection:|Enter and loiter in a pre-defined virtual region
Unattended Baggage:|Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal:|Objects removed from the pre-defined region, such as the exhibits on display.
Recognition:|Face Detection
General
Operating Conditions:|-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Power Supply:|12 VDC ± 25%, PoE (802.3af Class3)
