Camera
Image Sensor: | 1/3" Progressive Scan CMOS
Signal System: | PAL/NTSC
Min. Illumination: | 0.014 lux @ (ƒ/1.4, AGC on), 0 lux with IR
Shutter time: | 1/3 s to 1/10,000 s
Slow shutter: | Yes
Lens: | 2.8 mm to 12 mm @ ƒ/1.4 motorized lens
Lens Mount: | φ14
Adjustment Range: | 3-axis positioning
Day& Night: | IR cut filter with auto switch
Wide Dynamic Range: | 120 dB
Digital noise reduction: | 3D DNR
Compression Standard Video Compression: | H.264/MJPEG/H.264+
H.264 code profile: | Main Profile
Video bit rate: | 32Kbps~16Mbps
Dual Stream: | Yes
Max. Image Resolution: | 2688×1520
Frame Rate: | 20 fps (2688 × 1520), 30 fps (1920 × 1080, 1280 × 720)
Image Enhancement: | WDR, BLC, ROI
Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
3D DNR: | Supported
Network
System Compatibility: | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Communication Interface:| 1 RJ45 10M / 100M Ethernet interface
On-board storage:| Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
General
Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F),Humidity 95% or less (non-condensing)
Power Supply: | 12 VDC ± 10%, PoE (802.3af)
Power Consumption: | Max. 5.5 W (Max. 7.5 W with IR cut filter on)
Weather Proof: | IP66
IR Range: | 30 meters
Dimensions: | 95 mm × 105 mm × 258.6 mm (3.74" × 4.13" × 10.18")
Weight: | 1200 g (2.65 lbs)

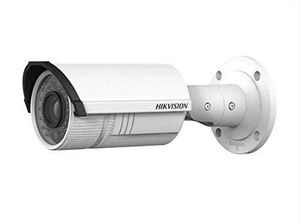

Hikvision English Version IP Camera DS-2CD2642FWD-IS 4MP WDR Vari-focal Network Camera HD 1080p Real Time Video IR Bullet POE Cctv Camera
Camera
Image Sensor: | 1/3" Progressive Scan CMOS
Signal System: | PAL/NTSC
Min. Illumination: | 0.014 lux @ (ƒ/1.4, AGC on), 0 lux with IR
Shutter time: | 1/3 s to 1/10,000 s
Slow shutter: | Yes
Lens: | 2.8 mm to 12 mm @ ƒ/1.4 motorized lens
Lens Mount: | φ14
Adjustment Range: | 3-axis positioning
Day& Night: | IR cut filter with auto switch
Wide Dynamic Range: | 120 dB
Digital noise reduction: | 3D DNR
Compression Standard Video Compression: | H.264/MJPEG/H.264+
H.264 code profile: | Main Profile
Video bit rate: | 32Kbps~16Mbps
Dual Stream: | Yes
Max. Image Resolution: | 2688×1520
Frame Rate: | 20 fps (2688 × 1520), 30 fps (1920 × 1080, 1280 × 720)
Image Enhancement: | WDR, BLC, ROI
Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
3D DNR: | Supported
Network
System Compatibility: | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Communication Interface:| 1 RJ45 10M / 100M Ethernet interface
On-board storage:| Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
General
Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F),Humidity 95% or less (non-condensing)
Power Supply: | 12 VDC ± 10%, PoE (802.3af)
Power Consumption: | Max. 5.5 W (Max. 7.5 W with IR cut filter on)
Weather Proof: | IP66
IR Range: | 30 meters
Dimensions: | 95 mm × 105 mm × 258.6 mm (3.74" × 4.13" × 10.18")
Weight: | 1200 g (2.65 lbs)
