Description
Specifications
Main Controller: 32-bit MCU
Sensor: High-precision 3-axis gyroscope and 3-axis accelerometer
Gyroscope Scale Range: ±2000 dps
Accelerometer Scale Range: ±4g
PWM Output: 920uS ~ 2120uS with 1520uS center length / 50 ~ 333Hz
Input Voltage: 4.8V ~ 8.4V
Operating Temperature: -10 ℃ ~ 50 ℃
Size: 43×27×14mm
Weight: 10g (excluding wires)
External LED Module
An external LED module is added to make the gyro even easier and more convenient to install and use.
Trainer Mode
Trainer Mode is added. When flying in this mode, you can only tilt the plane to a certain angle by giving aileron or elevator stick input. Roll and loop are not allowed in this mode, the plane will be stabilized all the time. This prevents the plane from being tilted into a larger angle that may cause a danger. This mode can be used as emergency rescue, or in other applications, e.g. to have a training for new beginners or to use for FPV
6-position Mode Switching
This new feature allows you to switch the flight mode among all modes supported during flight, by using a mixing of a 2-position and 3-position toggle switch on your transmitter
Programming Examples for 6-position Switch Mixing
Pass-through Channels
Pass-through function is available for [A2] and [E2] channels. When the second aileron or elevator channel is unused, the input signal applied to [A2] or [E2] will directly be passed to the output [OUT4] or [OUT5]. With this feature, the [A2] and [E2] can be used as any other purpose as you need, e.g. throttle, gear or flap, etc
Main Controller: 32-bit MCU
Sensor: High-precision 3-axis gyroscope and 3-axis accelerometer
Gyroscope Scale Range: ±2000 dps
Accelerometer Scale Range: ±4g
PWM Output: 920uS ~ 2120uS with 1520uS center length / 50 ~ 333Hz
Input Voltage: 4.8V ~ 8.4V
Operating Temperature: -10 ℃ ~ 50 ℃
Size: 43×27×14mm
Weight: 10g (excluding wires)
External LED Module
An external LED module is added to make the gyro even easier and more convenient to install and use.
Trainer Mode
Trainer Mode is added. When flying in this mode, you can only tilt the plane to a certain angle by giving aileron or elevator stick input. Roll and loop are not allowed in this mode, the plane will be stabilized all the time. This prevents the plane from being tilted into a larger angle that may cause a danger. This mode can be used as emergency rescue, or in other applications, e.g. to have a training for new beginners or to use for FPV
6-position Mode Switching
This new feature allows you to switch the flight mode among all modes supported during flight, by using a mixing of a 2-position and 3-position toggle switch on your transmitter
Programming Examples for 6-position Switch Mixing
Pass-through Channels
Pass-through function is available for [A2] and [E2] channels. When the second aileron or elevator channel is unused, the input signal applied to [A2] or [E2] will directly be passed to the output [OUT4] or [OUT5]. With this feature, the [A2] and [E2] can be used as any other purpose as you need, e.g. throttle, gear or flap, etc

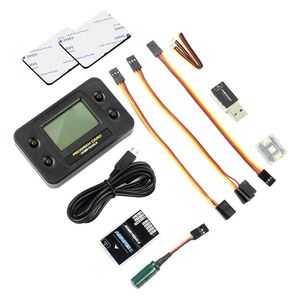

HOBBYEAGLE A3 Super 3 6-Axle Gyro & RC Flight Controller Stabilizer Full Set - Programe Card for RC Airplane
