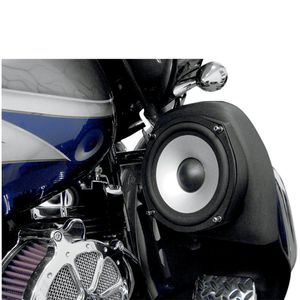

Hogtunes FL-7W 7-inch Fairing Lower Woofers for 2006-2013 Harley-Davidson Touring models with Fairing Lowers.

this video assumes you are using the rear channels of a hog Tunes amp to power the woofers and the lowers remove the bikes fairing and put aside locate the speaker wire harness that came in the woofer kit and plug it into the rear output plug on the side of your hog tunes for channel lamp the balance of the wire harness will pass through where the main wire harness passes through on the brake side of the bike position the FL 7w harness so the quick-release plugs are sitting on top of the engine garden as close to the middle as you can hang the remaining wires on the correct side of the engine guard noting these wires are labeled clutch side and brake side remove the access covers from the front of the glove boxes using a cutting tool such as side cutters the four male parts on each access panel will be cut and removed cutting them from inside the glove box will eliminate marks on the fr
