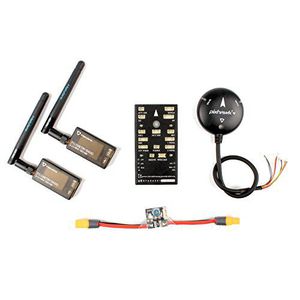

The Pix32 is the next step in FC hardware with its powerful ST micro 32bit ARM Cortex core and massive I/O support. The Pix32 is one of the most advanced autopilot systems available with support for almost any type of vehicle from a moon rover or a multirotor aircraft, even a submarine! Designed by the PX4 open-hardware project, it is supported by a number of development communities making this one of the most flexible and reliable platforms for vehicle control, with many features and functions sure to be available in the future.

• Advanced 32 bit ARM Cortex M4 Processor running NuttX RTOS
• 14 PWM/servo outputs (8 with failsafe and manual override, 6 auxiliary, high-power compatible)
• Abundant connectivity options for additional peripherals (UART, I2C, CAN)
• Integrated backup system for in-flight recovery and manual override with a dedicated processor and stand-alone power supply
• Backup system integrates mixing, providing consistent autopilot and manual override mixing modes
• Redundant power supply inputs and automatic failover
• External safety button for easy motor activation
• Multicolor LED indicator
• High-power, multi-tone piezo audio indicator
• MicroSD card for long-time high-rate logging
• Super precise digital GPS with compass
• Telemetry with OSD (433Mhz/915Mhz)

• Input Voltage: 2~10s (7.4~37V)
• Size: 81x44x15mm
• Weight: 33.1g

Microprocessor

• 32-bit STM32F427 Cortex M4 core with FPU
• 168 MHz/256 KB RAM/2 MB Flash
• 32-bit STM32F103 failsafe co-processor

Sensors

• ST Micro L3GD20 3-axis 16-bit gyroscope
• ST Micro LSM303D 3-axis 14-bit accelerometer / magnetometer
• Invensense MPU 6000 3-axis accelerometer/gyroscope
• MEAS MS5611 barometer

Interf
