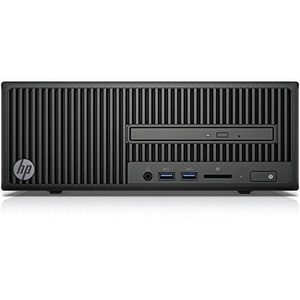

HP 280 G2 Small Form Factor PC W5X38UT#ABA

To remove the top cover, first, loosen the thumb screw at the rear of the cover that secures the cover to the PC. Grasp the handle on the cover and pull towards the back of the PC to release the cover. Pull the cover away from the PC. The top cover has several tabs on its side and leading edges, which fit into slots on the sides and front lip of the PC. To replace the cover, align the tabs on the cover into the corresponding slots on the PC. Then slide the cover forward to lock it into position. Tighten the thumb screw at the rear of the cover to secure the cover to the PC. To remove the front bezel, first, remove the top cover. Unlatch the three top tabs of the front bezel, and rotate the bezel away from the PC. The front bezel has three hooked tabs on the bottom, and the top, which fit into slots and over edges on the PC. To replace the front bezel, align the tabs on the bottom of the
