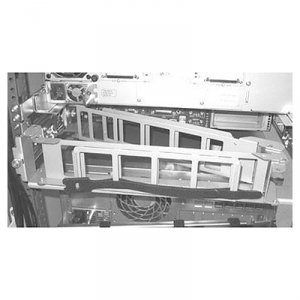

HP 2U CMA for Easy Install RailNew Retail, 3032732New Retail Kit)

this video provides instructions on how to install a server into a rack using the Tula's short slide rail kit with brackets for the cable management arm or CMA the installation procedure also applies to the toolless short slide rail kit the slide rail kit package contains the following items left rail and right rail and two m6 screws install the rear ranting bracket of the left rail from the front of the rack you can install the rails in two racks with square holes or round holes slide the outer rail toward the rear of the rack line up the pins on the rear of the rail with the corresponding holes in the rear mounting flange attach the rear mounting bracket to the frame by pushing the rail toward the rear of the rack until the rear latch opens push the rail toward the rear of the rack until the pins are inserted into the corresponding holes and a rear latch rotates back to the closed pos
