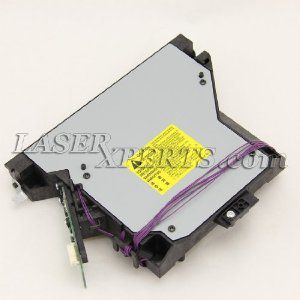

HP RM1-8406-000CN HP LASER/SCANNER ASSY

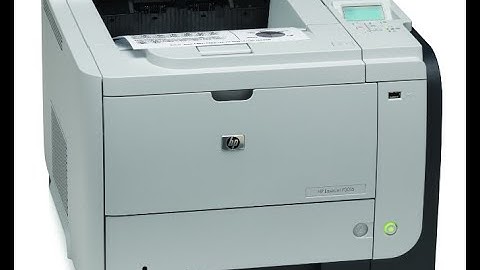

[Music] today we have this hp laserjet uh 3010 3015 which is showing an error 5110 in this era most of the time is related to the laser scanner that is bad and uh i am going to go to the steps and show you how to replace that part so the first step is to remove the tray one [Music] and on the right side you're gonna remove the side cover and remove one screw to slide it out [Music] on the third step you're gonna pull down the back door and lower it until it is fully open release the latch or handle on the right side also release tabs from the left and the right to easily remove the rear cover hold from each side to pull it out also to make it easier to remove the back cover remove the top cover first it will make it easier to remove the back cover on the fourth step you're gonna remove this part of the rear cover on the fifth step remove one screw and remove top right cover [Music] on t
