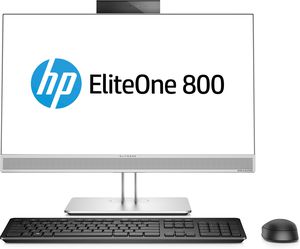

HP Smart Buy EliteOne 800 G4 AIO

removing and replacing parts hp elite 1 800 g4 aio desktop pc how to replace the cable cover removal slide each of the locking latches for the cable cover to the center unlocked position pull the cable cover off of the unit replacement cable cover has two tabs at the top and two tabs at the bottom that fit into slots on the rear of the pc to replace the cable cover align the tabs into their slots slide each of the locking latches for the cable cover into the outside locked position replace the two torx 15 security screws for the cable cover if they were installed at removal how to replace the stand to remove the stand first place the unit face down on a soft flat surface remove the cable cover removal press up on the latch to release the top part of the stand from the rear of the unit and pull the stand assembly away from the unit replacement the top of the stand has two metal tabs that
