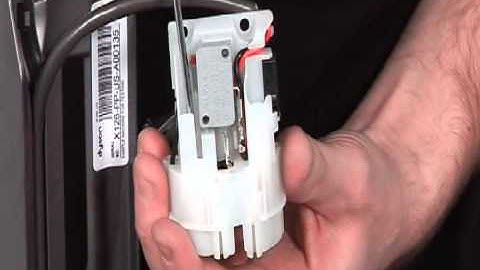

the first step when assembling the switch housing is to fit the power cord assembly for the sake of this film I'm using the existing power cord that I previously removed if however you've replaced the power cord it will be necessary to fit the cable protector over the end of the power cord before proceeding concentrating on this area of the switch housing need to locate the end of the outer insulation of the power cord into the end of the retaining channel and then locate it all the way around ensuring it's adequately seated within all retaining locations then concentrating on the live wire need to feed it up into the hole in the side of the switch housing and ensure that it's taut within the channel and then pull it up through the top and then back down into the hole in the center of the switch housing so that it protrudes and this hangs freely through the front of the housing with the
