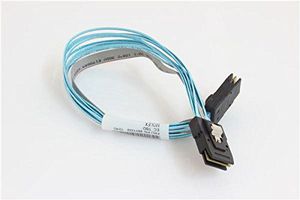

IBM CABLE SAS SIGNAL 250MM FOR x3650M3

to install the SAS cable guide using the screw hole for alignment hook the tab on the rear of the cable guide underneath the system board and secure with the single screw route any removed SAS cables back into the cable guide install the fan cage assembly place the fan cage assembly into the server using the tabs on the cage and the slots in the chassis for alignment squeeze and hold the tabs on the release latches and rotate the latches down until the assembly is latched in position here is a closer look at the release latch action install the top cover with the cover release latch in the open position place the cover on top of the server so that the tabs on the cover align with the slots in the chassis slide the top cover forward then press down on the cover release latch until it clicks into place
