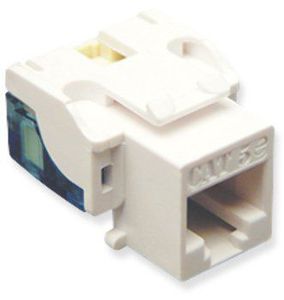

IC107E5CWH - 25PK Cat5 Jack - White Computers, Electronics, Office Supplies, Computing

today we're going to show you how to install a category 5e Ethernet jack this is the Jack that used for computers if you look closer on the side of the Ethernet jack you'll see that there's an A and B wiring configuration a is on the bottom bezel on top the difference is in the a and B is the green and orange reversed we are going to use the B today and all this means is that every jack that we install on this network has to be B in order for it to work properly another side you can see the blue and brown this is our category 5e Ethernet cable we're going to strip it open here with this wire stripper slipped in there has a little little razor there you go it's open first one take this little rip cord wire here this is to help you remove the jacket we don't need it anymore it gives it tensile strength for when you pull it as well there you go now we got to untwist these wires we got twis
