Description

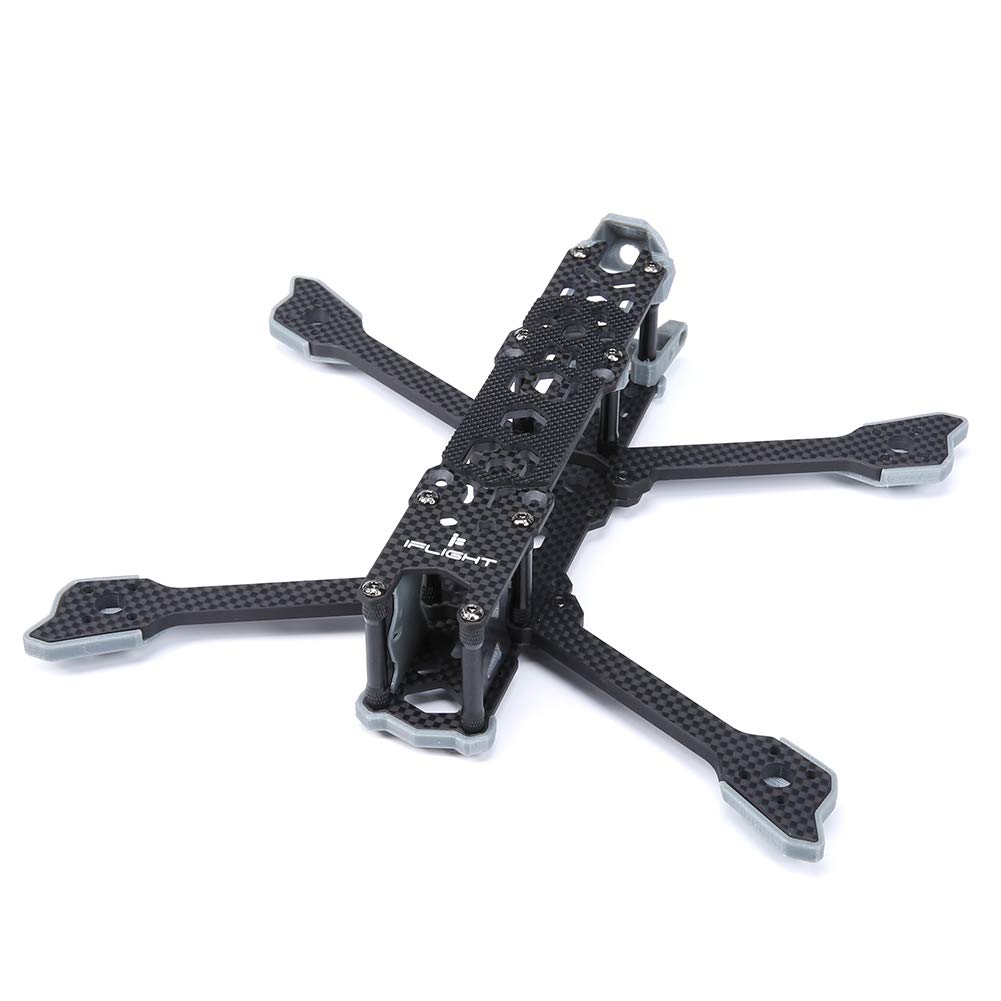

The TITAN FH5 Freestyle FPV Frame was designed for the DJI Digital FPV System. It is also suited for a 5-inch propeller power system and flight controllers.
With the 5-inch propeller power system, users have ensured a super great flying experience. Soft TPU material helps to protect the camera and antenna in the event of a crash.
Features:
Popular H style configuration, prop in View
Boomerang arms
Optimized weight distribution: DJI unit and Stack centered
- Fits both 30.5x and 20x stacks
Full 3K Carbon Fiber airframe with chamfered arm
- 223mm wheelbase, weight: 124.9g dry weight without TPU parts
Specifications:
Weight: 131.5 (with TPU parts, and battery anti-slip pads)
Wheelbase: 223mm
Main body dimension: 177*136mm
Bottom to top distance: 35mm
Arm thickness: 5mm
Bottom plate thickness: 3mm
Top plate thickness: 2.5mm
Camera plate thickness: 1.5mm( 2.5mm included TPU inserts)
Mounting Holes: 30.5*30.5mm
Support camera size: 19*19mm 22*22mm
Recommended motors: XING 2207 2208 2306 Motor
Package included:
-1 x TITAN FH5 HD Frame
-1 x Screw Bag
-1 x TPU Camera mount adapters
-4 x Arm guard/Motor mount
-1 x TPU DJI Air Unit Bracket Mount
-1 x TPU DJI Air Unit Antenna Mount
-1 x TPU bottom plate front protective mount
-1 x TPU bottom plate rear protective mount
-1 x Battery Anti-slip Mat
-2 x Battery Straps
NOTE: frame with TPU parts only, the DJI air unit, antenna all do not include.
With the 5-inch propeller power system, users have ensured a super great flying experience. Soft TPU material helps to protect the camera and antenna in the event of a crash.
Features:
Popular H style configuration, prop in View
Boomerang arms
Optimized weight distribution: DJI unit and Stack centered
- Fits both 30.5x and 20x stacks
Full 3K Carbon Fiber airframe with chamfered arm
- 223mm wheelbase, weight: 124.9g dry weight without TPU parts
Specifications:
Weight: 131.5 (with TPU parts, and battery anti-slip pads)
Wheelbase: 223mm
Main body dimension: 177*136mm
Bottom to top distance: 35mm
Arm thickness: 5mm
Bottom plate thickness: 3mm
Top plate thickness: 2.5mm
Camera plate thickness: 1.5mm( 2.5mm included TPU inserts)
Mounting Holes: 30.5*30.5mm
Support camera size: 19*19mm 22*22mm
Recommended motors: XING 2207 2208 2306 Motor
Package included:
-1 x TITAN FH5 HD Frame
-1 x Screw Bag
-1 x TPU Camera mount adapters
-4 x Arm guard/Motor mount
-1 x TPU DJI Air Unit Bracket Mount
-1 x TPU DJI Air Unit Antenna Mount
-1 x TPU bottom plate front protective mount
-1 x TPU bottom plate rear protective mount
-1 x Battery Anti-slip Mat
-2 x Battery Straps
NOTE: frame with TPU parts only, the DJI air unit, antenna all do not include.
