Description

-Part Type Main Video Board Motherboard Unit

-Part Number TXDCB01K0750001

-Known Models INSIGNIA NS-39D400NA14

We are here to help! If you're unsure of how to diagnose and troubleshoot the TV message or call us for more assistance before purchasing! We offer FREE PROFESSIONAL TECH SUPPORT. The only real way to properly troubleshoot / diagnose is by trial and error since there could be several boards that show similar symptoms and possibly more than 1 board not working. Sometimes the symptoms change. Be patient with questions from us and exchanges!

For help with first timers go on YouTube and search "TV Repair Tutorial"

*NOTE* LG & Vizio TVs must be plugged in for 5 minutes before it will turn on*

*For main board replacements check firmware upgrades online - We can not pre-install them*

1. Inspect ALL Ribbons and connectors. Any tears or bad connections between boards must be replaced FIRST

2. If you have any of these boards, it should be the first board to be replaced
A) T-Con Board - Video Problems (No Video with standby light on, audio but no video, grainy, distorted, or color problems in screen)
B) X or Y Buffer Board (Plasma TVs only) - Standby light is on but no power
C) Backlight Inverter / LED Driver - No Video with standby light on

3. Main Video Board
- Standby light is on but no power
- Either video or audio does not work (if no T-Con in TV. If audio but no video it is T-Con)

4. Power Board - No power AND standby light does NOT turn on. If standby light is on try other boards above

5. Panel - No power, distorted picture, lines, slow motion, half screen, faded in / out. Panel problems are usually not worth replacing the panel.

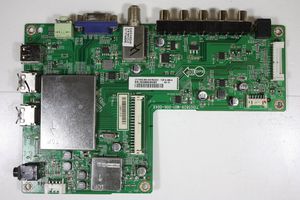

INSIGNIA 39" NS-39D400NA14 TXDCB01K0750001 Main Video Board Motherboard Unit

Get price

Current Price

$47.99

Average

$47.99

Min Price

$47.99

Max Price

$47.99

Description

-Part Type Main Video Board Motherboard Unit

-Part Number TXDCB01K0750001

-Known Models INSIGNIA NS-39D400NA14

For help with first timers go on YouTube and search "TV Repair Tutorial"

*NOTE* LG & Vizio TVs must be plugged in for 5 minutes before it will turn on*

*For main board replacements check firmware upgrades online - We can not pre-install them*

1. Inspect ALL Ribbons and connectors. Any tears or bad connections between boards must be replaced FIRST

3. Main Video Board
- Standby light is on but no power
- Either video or audio does not work (if no T-Con in TV. If audio but no video it is T-Con)

4. Power Board - No power AND standby light does NOT turn on. If standby light is on try other boards above

5. Panel - No power, distorted picture, lines, slow motion, half screen, faded in / out. Panel problems are usually not worth replacing the panel.

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

okay here we have this 39 inch LED TV it's an insignia and as you can see we've got it plugged in you see the red light is on and we're going to power it up get the power light puts a few times and the picture and/or backlight should come up by now as you pursue this actually nothing so the first thing that I always do is just double check is a nice bright flashlight put it up against the screen as you can see I do see some words there and then that time go ahead and hit the menu button make it very obvious for you and as you can see you can definitely see the menu on the screen so we either have a backlight a bad LED backlight problem or well we're back like probably the way it goes but they need to be caused by that LED inside of the screen here or it can be caused by the main board not telling not sending the backlight on or LED on signal to the power supply to shut on the LED circui
