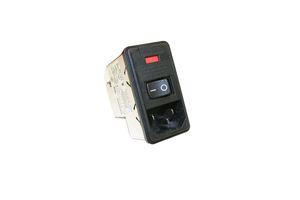

This Interpower 83544000 fused four-function snap-in power entry module, in black, has an International Electrotechnical Commission (IEC) 60320 C14 power inlet, an electrical filter, and a control switch. It has international and North American current and voltage ratings of 10 amps at 120 or 250 VAC. This module has a PBT (polybutylene terephthalate) housing for electrical and thermal insulation, and copper alloy terminals for conductivity. Its temperature range is -10 to +40 degrees C. The module has a built-in electronic filter that reduces electromagnetic interference (EMI) in the bandwidth range of 150 KHz to 30 MHz, and accommodates a 5 x 20 mm or 1/4 x 1-1/4" fuse (not included) to protect the equipment in the circuit. It has a snap-in body for mounting to a panel, and five 4.8 mm quick disconnects for attaching conductors. The module measures 58.67 x 31.49 x 54.1 mm (H x W x D). (H is height, the vertical distance from bottom to top; W is width, the horizontal distance from left to right; D is depth, the sub-panel horizontal distance from front to back.) It has an Underwriters Laboratories (UL) 94 V-0 flammability rating, meets Restriction of Hazardous Substances (RoHS) requirements, is certified by the Verband der Elektrotechnik (VDE) and the Canadian Standards Association (CSA) for quality assurance, and is UL Recognized. This four-function power entry module is suitable for a range of electrical applications with a matching connector.
| Specifications | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Color | Black | ||||||||||||||
| Material | PBT | ||||||||||||||
| Mounting style | Snap-in | ||||||||||||||
| Panel thickness | 0.08 to 2 mm | ||||||||||||||
| International current and voltage rating | 10 amp at 120 or 250 VAC | ||||||||||||||
| North American current and voltage ratings | 10 amp at 120 or 250 VACInterpower 83544000 Four Function Filtered Snap-In Module, C14 Inlet, Switch, Single Fused, Filter, 0.08-2mm Panel Thickness, 10A Current Rating, 120/250VAC Voltage RatingCurrent Price $58.79 Average $41.27 Min Price $10.37 Max Price $65.49 Price dynamics 30% Description This Interpower 83544000 fused four-function snap-in power entry module, in black, has an International Electrotechnical Commission (IEC) 60320 C14 power inlet, an electrical filter, and a control switch. It has international and North American current and voltage ratings of 10 amps at 120 or 250 VAC. This module has a PBT (polybutylene terephthalate) housing for electrical and thermal insulation, and copper alloy terminals for conductivity. Its temperature range is -10 to +40 degrees C. The module has a built-in electronic filter that reduces electromagnetic interference (EMI) in the bandwidth range of 150 KHz to 30 MHz, and accommodates a 5 x 20 mm or 1/4 x 1-1/4" fuse (not included) to protect the equipment in the circuit. It has a snap-in body for mounting to a panel, and five 4.8 mm quick disconnects for attaching conductors. The module measures 58.67 x 31.49 x 54.1 mm (H x W x D). (H is height, the vertical distance from bottom to top; W is width, the horizontal distance from left to right; D is depth, the sub-panel horizontal distance from front to back.) It has an Underwriters Laboratories (UL) 94 V-0 flammability rating, meets Restriction of Hazardous Substances (RoHS) requirements, is certified by the Verband der Elektrotechnik (VDE) and the Canadian Standards Association (CSA) for quality assurance, and is UL Recognized. This four-function power entry module is suitable for a range of electrical applications with a matching connector.
| ||||||||||||||
