Description

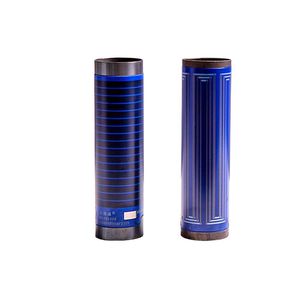

The Rare-Earth Metal Thick Film is one of today's most innovation and forward-looking solution for electric heating field. The thick film heating tubes/elements are produced by screen-printing dielectrics (5 layers), resistance (palladium-silver), conductor (silver) and isolation glazes on the substrate and sintered 8 times at temperature over 900℃. With its simple tubular structure, it can heat water flow inside the tube. Electric Circuit printed on tube surface, to heating the water flow inside. For applications where space is limited, this simple profile heater offers high thermal power density and fast response times to heat up or cool down (due to low thermal mass). Main Features 1.Electric Circuit printed on stainless steel tube surface, to heating the water flow inside. 5 isolation layers sintered on the surface. 2.Large heat transfer area on tube surface; Ramp up and Cool down quickly; High utilization rate up to 93% or above. 3.Fast temperature response, power density is as high as 60W/cm² and heating circuit's temperature raising rate exceeds 80℃/s. 4.Simple structure, compact profile, various applications
ISO Certification tubular heater for electric water heater faucet φ30 2200W
Current Price
$24
Average
$24
Min Price
$24
Max Price
$24
Description
The Rare-Earth Metal Thick Film is one of today's most innovation and forward-looking solution for electric heating field. The thick film heating tubes/elements are produced by screen-printing dielectrics (5 layers), resistance (palladium-silver), conductor (silver) and isolation glazes on the substrate and sintered 8 times at temperature over 900℃. With its simple tubular structure, it can heat water flow inside the tube. Electric Circuit printed on tube surface, to heating the water flow inside. For applications where space is limited, this simple profile heater offers high thermal power density and fast response times to heat up or cool down (due to low thermal mass). Main Features 1.Electric Circuit printed on stainless steel tube surface, to heating the water flow inside. 5 isolation layers sintered on the surface. 2.Large heat transfer area on tube surface; Ramp up and Cool down quickly; High utilization rate up to 93% or above. 3.Fast temperature response, power density is as high as 60W/cm² and heating circuit's temperature raising rate exceeds 80℃/s. 4.Simple structure, compact profile, various applications
