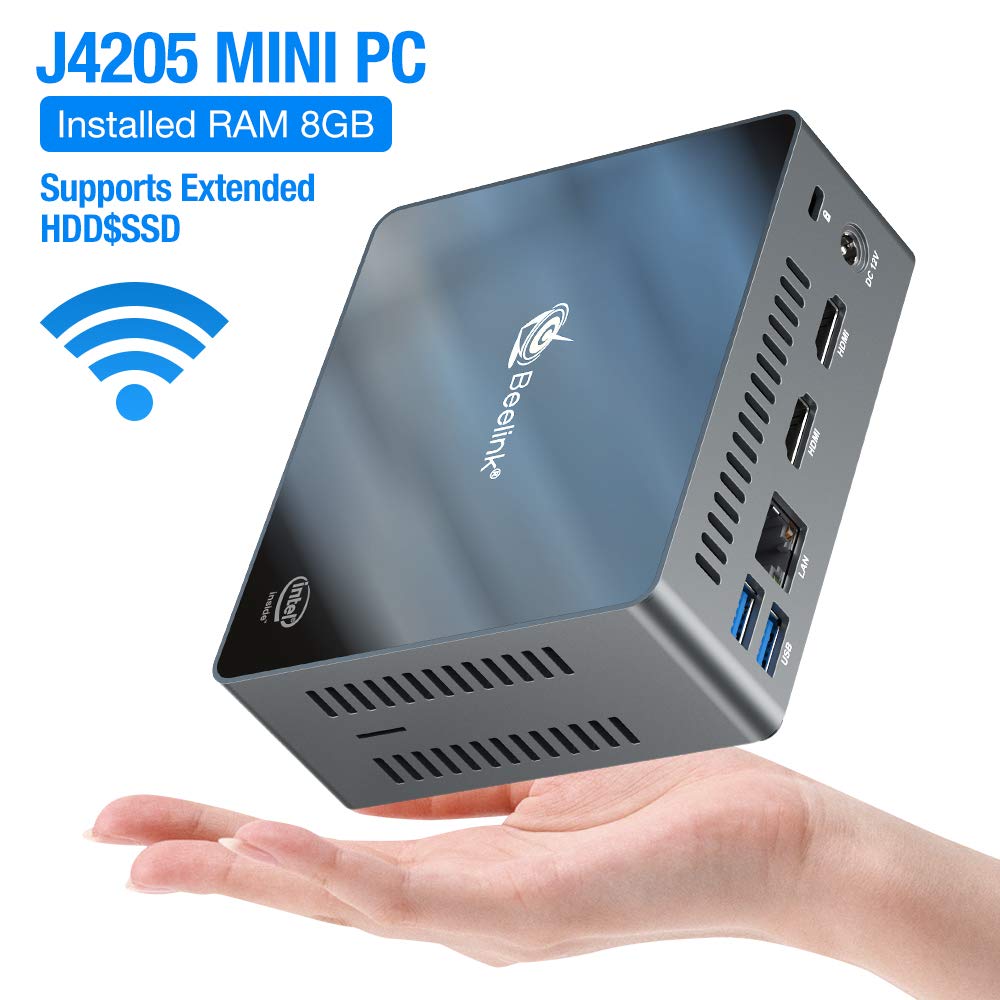

Mini PC  LPDDR4 8GB / 128GB SSD Intel Apollo Lake Pentium J4205 Quad Core Intel HD Graphics 505 4K Desktop PC 1000Mbps/LAN 2.4+5.8GHz Dual Band WiFi

Product Specification

Instruction Set: 64-bit

Model: MFY J45 8G/128G

Dimension: 115*102.5*41mm

System Config

DDR: LPDDR4 8G

Storage: 128GB SSD

Operating System: Windows 10 Home

CPU: Intel Apollo Lake Pentium Processor J4205 (2M Cache, up to 2.6GHz)

Wireless Function: BT 4.0, Dual Band 2.4G+5.8G

Ethernet: 1000Mbps LAN

Graphics: Intel HD Graphics 505 (4K 30Hz)

Expand Storage: SATA 2.5-inch Hard Disk / TF Card

Interface

2* HDMI Port

4* USB3.0Port

1* RJ45 (1000Mbps LAN) Port

1* TF Card Port

1* Headphone Microphone Jack

1* DC in Port

Package Included:

1* Mini PC

1* US Power Plug

2* HDMI Cable (80cm&20cm)

1* VESA Mount & Screws

1*English Manual

Mini pc Common problems and solutions

1. Blues creen:

System reason, reset system

2.Normal shutdown method:

Click win, select power, select shut down/win+x, select shut down or sign out, select shut down

3. System update failure:

First check whether the storage space has 40GB of available space. If not enough, you can't finish the online update, or you can choose to update by phone.

4. Unable to activate:

Contact customer service and need new Windows key activation.

5. Connect the monitor not working, Or stop working after a period of use: It is caused by abnormal power outages of customers. Treatment methods:

(1): Hold the reset button (the small hole behind the machine interface) for more than 5 seconds without power supply, release the power and switch on again;

(2): Disassemble the RTC battery on the motherboard of the bottom shell and unplug it for a few seconds, then plug it int
