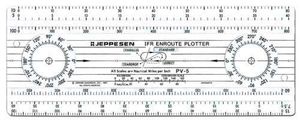

Jeppesen PV-5 IFR Enroute Instrument Flight Navigation Plotter - 10009534

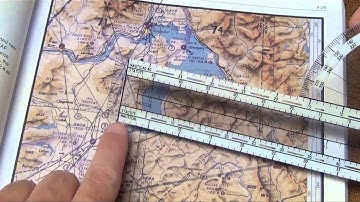

okay so let's use our plotter to find the distance and direction between two airports and let's say we're going to start a flight at cord alone which is in section two right there and we're going to fly to Sandpoint which is in section one okay so this is a sectional chart here that we have and this is from this BM jeppesen study guide well the first thing you want to do is take the straight edge of your plotter and you want to position it right through the middle of both airports at least as best as you can now when you draw your line make sure to extend the line pass the airport's you'll see why in a moment you don't want to just start in the middle and end in the middle you want to store it about an inch before to about an inch after so I now have a line between the two airports now I want to measure the distance right along the line from the center of one Airport to the center of th
