Description
7M refresh rate increased to 10Hz, 6M and 6H are 5Hz, search star speed, cold start speed than 6M, 6H twice as fast. Positioning accuracy of 2.5M, built-in high-precision electronic compass.
Due to the ultra-high performance of this product multi-GNSS (GPS, GLONASS, Galileo, QZSS and SBAS) engines, it provides high sensitivity positioning in the shortest acquisition time.
Receiver type:
56-channel u-blox 7 engine
GPS L1 C / A, GLONASS L1 FDMA
QZSS L1 C / A
Hardware support Galileo E1B / C, Compass
SBAS: WAAS, EGNOS, MSAS
The maximum update rate is 10 Hz
Accuracy GPS / GLONASS
Positioning 2.5 m CEP / 4.0 m
SBAS 2.0 m CEP / n.a.
Capture GPS / GLONASS
Cold start: 29 s / 30 s
Auxiliary start: 5 s / n.a.
Re-capture: 1 s / 3 s
Sensitivity GPS / GLONASS
Tracking: -162 dBm / -158 dBm
Cold start: -148 dBm / -140 dBm
Temperature start: -148 dBm / -145 dBm
Auxiliary:
AssistNow Online
AssistNow Offline
AssistNow Autonomous
Compliant with OMA SUPL and 3GPP specifications
Oscillator: TCXO , common crystal
RTC crystal: built-in
Anti-jamming: active CW detection and removal
Memory: Onboard ROM or Flash
Antenna support: active and passive antennas
Specification:
GPS antenna size: 25 * 25 * 4mm
Shell size: 54x15mm (diameter x high)
Cable length: 200mm
Weight: 29G
Connection: Compass 4 pin / GPS (Pixhawk 6 pin / APM 5 pin)
Due to the ultra-high performance of this product multi-GNSS (GPS, GLONASS, Galileo, QZSS and SBAS) engines, it provides high sensitivity positioning in the shortest acquisition time.
Receiver type:
56-channel u-blox 7 engine
GPS L1 C / A, GLONASS L1 FDMA
QZSS L1 C / A
Hardware support Galileo E1B / C, Compass
SBAS: WAAS, EGNOS, MSAS
The maximum update rate is 10 Hz
Accuracy GPS / GLONASS
Positioning 2.5 m CEP / 4.0 m
SBAS 2.0 m CEP / n.a.
Capture GPS / GLONASS
Cold start: 29 s / 30 s
Auxiliary start: 5 s / n.a.
Re-capture: 1 s / 3 s
Sensitivity GPS / GLONASS
Tracking: -162 dBm / -158 dBm
Cold start: -148 dBm / -140 dBm
Temperature start: -148 dBm / -145 dBm
Auxiliary:
AssistNow Online
AssistNow Offline
AssistNow Autonomous
Compliant with OMA SUPL and 3GPP specifications
Oscillator: TCXO , common crystal
RTC crystal: built-in
Anti-jamming: active CW detection and removal
Memory: Onboard ROM or Flash
Antenna support: active and passive antennas
Specification:
GPS antenna size: 25 * 25 * 4mm
Shell size: 54x15mm (diameter x high)
Cable length: 200mm
Weight: 29G
Connection: Compass 4 pin / GPS (Pixhawk 6 pin / APM 5 pin)

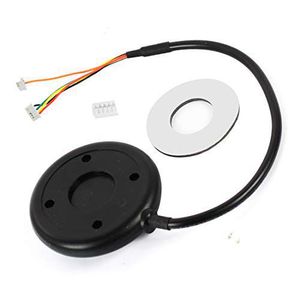

JMT 7m M8n GPS for Fly Controller APM2.5 2.6 2.8 with Compass for DIY Drone Quadcopter Kit
