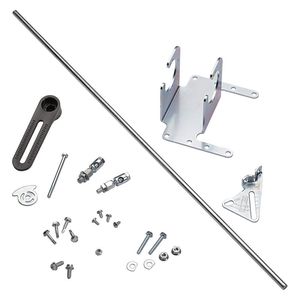

Johnson Controls M9203-250 Remote Mounting Kit with Crankarm Kit and Damper Linkage for D1300 Dampers

[Music] Johnson Controls m9 1x x-series damper actuators include the m9 108 M 916 m9 124 and m9 132 models all of these direct mount electric actuators operate on ac/dc 24 volt power the actuators are available for use with on/off floating proportional or resistive controllers these bio directional actuators do not require a damper linkage and are easily installed on a damper with a round shaft of up to three quarters of an inch or 20 millimeters in diameter or a square shaft up to five eighths of an inch they may be direct or remote mounted to a damper or mounted to a valve using one of the m9 thousand five XX valve linkage kits a single model delivers up to 280 pounds per inch of torque or 32 Newton meters the angle of rotation is mechanically adjustable from zero to 90 degrees in point five degree increments integral auxilary switches are available to indicate end stop position or to
