KINESIS Lift Kit (Tenting for The Freestyle Edge)

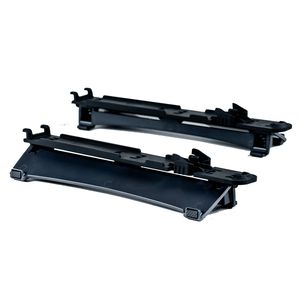

in this video we'll show you how to install and adjust both of the tinting accessories for the freestyle edge RGB keyboard the lift kit is designed to be used with the palm supports the v3 pro kit is designed to be used without the palm supports insert the V lifters to end tabs into the rectangular holes lower the V lifter and snap the two squeezed tabs into the palm rest repeat with the other side to remove the palm supports hold the key module in one hand and the palm support in the other hand simply pull the palm support straight away from the key module to seperate locate the right v3 lifter and insert the end tab into the rectangular holes on the right key module and push it down until it snaps into the slot on the inner front edge of the keyboard the V lifters have two hinged legs which provide keyboard tinting angles of five ten and fifteen degrees out of the box the V lifter is
