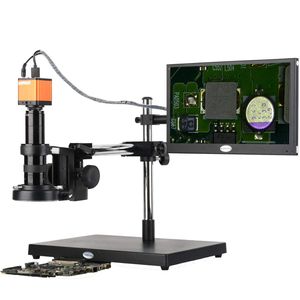

KP-H1660VX
LCD: 13.3 inch HDMI HD Monitor
Eyepiece: 0.5X
Zoom Objective: 0.7X-4.5X
Digital amplification: 17X-108X
Working distance: 90-110mm
Rise and fall range: 275mm
Focusing range: 60mm
Base Plate size: 380X250X16mm
Bracket diameter: 50mm
Universal regulating frame: Diameter of column:25mm,transverse arm length:
310mm,hanger diameter:24.7mm
Output Interface: HDMI.USB
Sensor: sensor 1/2.3 inch
Image resolution: 4608*3456 (for TF Card),1920x1080(for TF Card)
Video recorder: 1920*1080@ 60fps
Pixel: 16 megapixel
Pixel Size: 1.4µm×1.4µm
Frame rate: 60fps
Brightness control: Auto/manual
White Balance: manual operation,automatic
Color: R/G/B adjustable
Image freezing: Support
OSD: Support
Cross cursor: Support multi-color,size adjustable
Transverse and vertical line: Support multi-color,4 pcs of transverse lines/vertical lines,movable
TF card interface: Maximum support 32G
Lens: C
USB interface: Usb2.0
Power supply: DC-12V/1A
LED ring light: Inside diameter size 60mm, The input voltage AC90-240V,The output power 4.5w, Light color white, Lamp bead 56

Packing List:
1、0.7X-4.5X zoom lens *1
2、Focus rack *1
3、Pillar stand and Base Plate *1
4、LED ring light *1
5、16 mp microscope camera *1
6、HDMI high definition line *1
7、USB data line *1
8、The camera power adapter *1
9、CD drive *1
10、Universal regulating frame *1
11、13.3 inch display screen *1

Note:
1、This product is mainly HDMI output,USB connected computer can only display images,can not adjust parameters;remote control can not be used when connecting computer;using remote control to adjust parameters needs to be in HDMI connected monitor state.
2、Prices quoted on all our products do not include customs duties.
