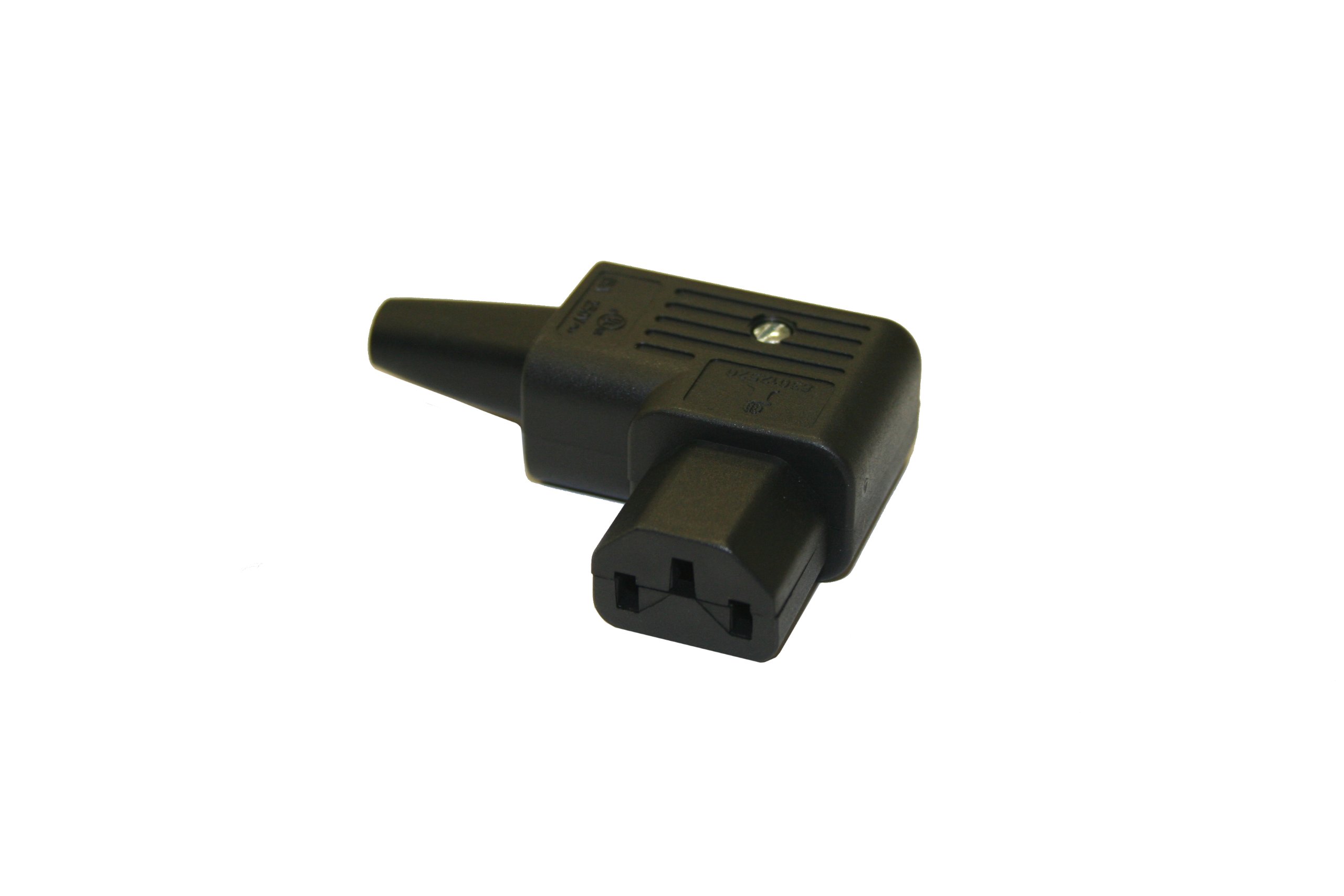

This Interpower 83012520 rewireable power connector is rated for 250 VAC at 10 amps (international) or 15 amps (North America) and has a 90-degree angle International Electrotechnical Commission (IEC) 60320 C13-style connector. The connector is made of polyamide and has nickel-plated brass terminals for corrosion resistance. The connector halves are held together with a screw, allowing the cord to be installed in the connector. This rewireable connector has an operating temperature range of -25 to +70 degrees C and is Underwriter Laboratories (UL) Listed for quality assurance, and is suitable for powering electronic devices that use this connector configuration.
| Specifications | |
|---|---|
| Connector type | Polyamide rewireable female connector with two halves, 90-degree angle, black |
| Power rating | 250 VAC, 10 or 15 amp |
| Socket type | IEC 60320 C13 |
| Terminal material | Nickel-plated brass |
| Operating temperature range | -25 to +70 degrees C |
| Standards met | UL Listed |
Interpower manufactures power system components such as cords, cable and connectors, plugs, sockets, circuit breakers, and terminal blocks. The company, founded in 1975 and headquartered in Oskaloosa, IA, meets International Organization for Standardization (ISO) standard 9001:2008.
Interpower 83012520 IEC 60320 C13 Angled Rewireable Connector, IEC 60320 C13 Socket Type, Black, 10A/15 Amps Rating, 250 VAC Rating
This Interpower 83012520 rewireable power connector is rated for 250 VAC at 10 amps (international) or 15 amps (North America) and has a 90-degree angle International Electrotechnical Commission (IEC) 60320 C13-style connector. The connector is made of polyamide and has nickel-plated brass terminals for corrosion resistance. The connector halves are held together with a screw, allowing the cord to be installed in the connector. This rewireable connector has an operating temperature range of -25 to +70 degrees C and is Underwriter Laboratories (UL) Listed for quality assurance, and is suitable for powering electronic devices that use this connector configuration.
| Specifications | |
|---|---|
| Connector type | Polyamide rewireable female connector with two halves, 90-degree angle, black |
| Power rating | 250 VAC, 10 or 15 amp |
| Socket type | IEC 60320 C13 |
| Terminal material | Nickel-plated brass |
| Operating temperature range | -25 to +70 degrees C |
| Standards met | UL Listed |
Interpower manufactures power system components such as cords, cable and connectors, plugs, sockets, circuit breakers, and terminal blocks. The company, founded in 1975 and headquartered in Oskaloosa, IA, meets International Organization for Standardization (ISO) standard 9001:2008.
