Description

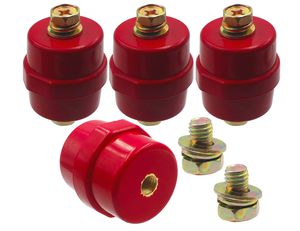

LBY Busbar Insulator SM-40 Polyester Standoff Insulators with Screw
● Product:
- SM-40
- Height: 40 mm
- Material: resin
- Nut size: M8
- Nut material:copper
- Screw hole depth:10.5mm
- Strength: axial tensile 3000N, bending 5000N, tightening torque 15N/ m
- Insulation resistance >1000MΩ
- Electrical properties: Operating voltage:600V, pulse voltage:5000V
- Leakage current <1mA at 2000V operating voltage
- Minimum arc distance: 15 (mm)
● Package:
- SM-40 - 4pcs
● Description:
- SM-40 with screw High-strength insulator,complex insulators.
- The product is generally cylindrical, with one screw hole at each end and a screw to fix the line that needs to be connected.
- This is a insulators set, including four pieces,and with corresponding screws.
- Widely used in high low power distribution cabinet.For power distribution, transmission, fixing copperor alumnium busbar, etc, play the role of insulation and connection.
- Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance.Excellent texture and good workmanship are your choice.
● Product:
- SM-40
- Height: 40 mm
- Material: resin
- Nut size: M8
- Nut material:copper
- Screw hole depth:10.5mm
- Strength: axial tensile 3000N, bending 5000N, tightening torque 15N/ m
- Insulation resistance >1000MΩ
- Electrical properties: Operating voltage:600V, pulse voltage:5000V
- Leakage current <1mA at 2000V operating voltage
- Minimum arc distance: 15 (mm)
● Package:
- SM-40 - 4pcs
● Description:
- SM-40 with screw High-strength insulator,complex insulators.
- The product is generally cylindrical, with one screw hole at each end and a screw to fix the line that needs to be connected.
- This is a insulators set, including four pieces,and with corresponding screws.
- Widely used in high low power distribution cabinet.For power distribution, transmission, fixing copperor alumnium busbar, etc, play the role of insulation and connection.
- Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance.Excellent texture and good workmanship are your choice.
LBY 4pcs Busbar Insulator, SM-40 Polyester Standoff Insulators with Screw(M8), High-Strength Busbar Insulator Supporter, Resin(Red)
Price is below average
Current Price
$15.59
Average
$16.07
Min Price
$15.59
Max Price
$16.59
Price dynamics
3%
Description
LBY Busbar Insulator SM-40 Polyester Standoff Insulators with Screw
● Product:
- SM-40
- Height: 40 mm
- Material: resin
- Nut size: M8
- Nut material:copper
- Screw hole depth:10.5mm
- Strength: axial tensile 3000N, bending 5000N, tightening torque 15N/ m
- Insulation resistance >1000MΩ
- Electrical properties: Operating voltage:600V, pulse voltage:5000V
- Leakage current <1mA at 2000V operating voltage
- Minimum arc distance: 15 (mm)
● Package:
- SM-40 - 4pcs
● Description:
- SM-40 with screw High-strength insulator,complex insulators.
- The product is generally cylindrical, with one screw hole at each end and a screw to fix the line that needs to be connected.
- This is a insulators set, including four pieces,and with corresponding screws.
- Widely used in high low power distribution cabinet.For power distribution, transmission, fixing copperor alumnium busbar, etc, play the role of insulation and connection.
- Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance.Excellent texture and good workmanship are your choice.
● Product:
- SM-40
- Height: 40 mm
- Material: resin
- Nut size: M8
- Nut material:copper
- Screw hole depth:10.5mm
- Strength: axial tensile 3000N, bending 5000N, tightening torque 15N/ m
- Insulation resistance >1000MΩ
- Electrical properties: Operating voltage:600V, pulse voltage:5000V
- Leakage current <1mA at 2000V operating voltage
- Minimum arc distance: 15 (mm)
● Package:
- SM-40 - 4pcs
● Description:
- SM-40 with screw High-strength insulator,complex insulators.
- The product is generally cylindrical, with one screw hole at each end and a screw to fix the line that needs to be connected.
- This is a insulators set, including four pieces,and with corresponding screws.
- Widely used in high low power distribution cabinet.For power distribution, transmission, fixing copperor alumnium busbar, etc, play the role of insulation and connection.
- Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance.Excellent texture and good workmanship are your choice.
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
