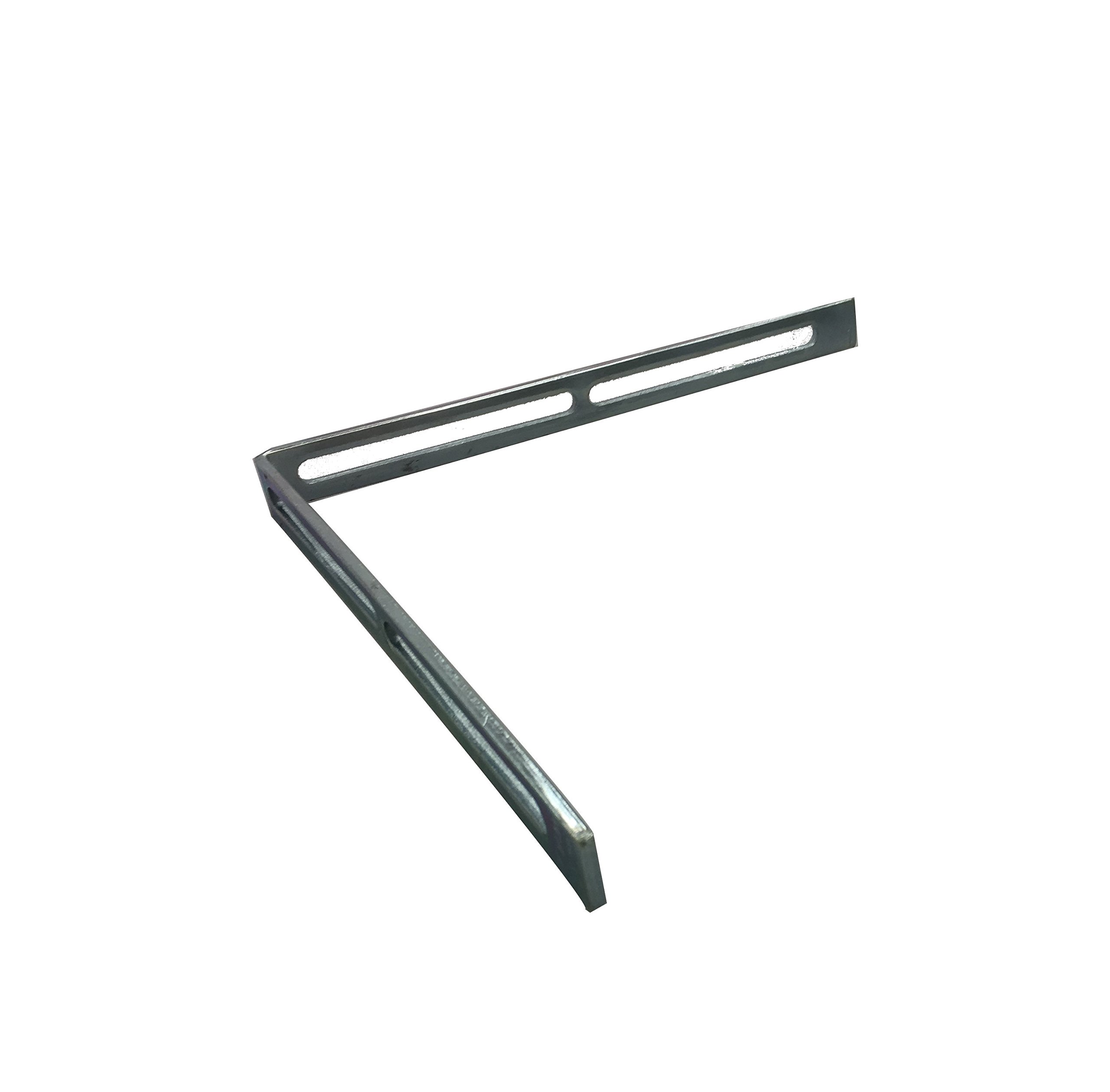

Legrand-Cablofil EZT90EZ Splicing EZT90EZ-1 T OR 2 90 Degree Bend KIT, 2 Piece

Before forming Cablofil® tray, it's important to understand the basic fasteners used to permanently connected formed cable trays. Clamping is accomplished with a FASLOCK C2530 in combination with the EZBM quarter bolt and nut, or the SWK Splice Washer Kit, in which the nut is permanently to the clamp plate, which makes fastening easy. Finally, the EZT90 and the Radius T90 are used in many completed bends, which will be illustrated later in this program. 90-degree junctions are quick to make by simply removing some of the side wires. Use the installation guide to determine the exact wires to be cut and the proper fasteners to be used. After all the wires are cut, the two trays are fastened together with the EZT90 Kit. The elbow degree can be made adjustable by substituting the EZT90 Kit for a CE40 clamp. To form 90-degree bends, select the tray size you are bending from the menu to deter
