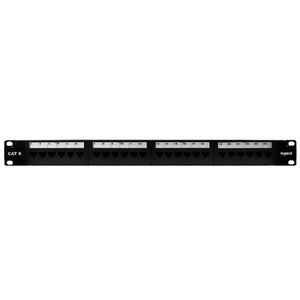

Legrand - On-Q 24845CC6 24Port Cat 6 Rack Mount Patch Panel

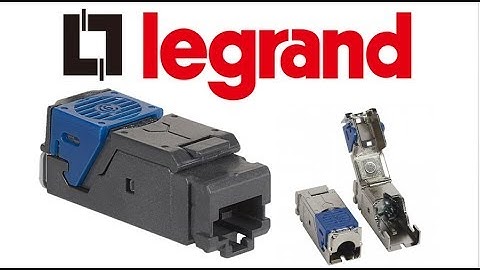

This is a Jack Legrand Category 6 To separate you must pull the blue safety to the right Proceed to lift, the Jack only consists of two pieces Now Remove the cable cover. Cut the thread pair spacer Now Insert the cables as follows. Please note the cable cover, it should be flush as shown Now we begin to distribute We rotate to make it easier. On this side there will always be brown and blue The only thing that varies according to the norm is on this side. Distribution will be in accordance with the T568B color standard It is the top. We start from left to right. You must be careful to make a correct distribution. The assembly will be carried out in accordance with the t568b standard. Note the colors at the top of the sticker. You start with the orange -orange and white Then white green and finally green On this side according to the chosen standard The brown and blue color will always k
