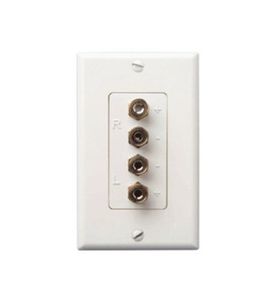

Legrand - On-Q 36474101V1 4Location Speaker Outlet, White

the digital audio system was designed to install easily so you can repeat the process quickly from house to house the job begins in the roughen phase this is a 28 inch on Q enclosure we're following the CEA 2030 wiring standard a pulling 16 for speaker wire and category 5 wire to complete my rough-in installation this is where my keypad power wire speaker wires keypad data wire and local source connection go here's my cat 5 for my global source input it runs back to the source on the au 7000 now it's time to finish the installation in the rooms I'm going to connect speaker wire and power to my keypad I'm also going to connect my connection to the au 7000 and my local source connection and now we're going to put it in the wall and finish it off now we're going to install a local source input I take my cat 5 connect it to the back this of course is connected to my keypad and now installed
