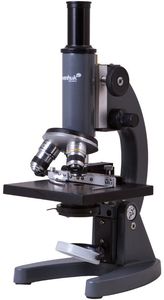

Levenhuk 7S NG Monocular Microscope
Magnification: 40–800х. Abbe condenser, an iris diaphragm and light filters
Levenhuk 7S NG Microscope is an optical tool that will help a beginner biologist study the micro world and perform scientific experiments. The microscope is designed for school children and kids who are keen on biology and who are interested in the comprehensive study of the world around us. With Levenhuk 7S NG, you can study prepared microscope slides, explore one-cell protozoa, and observe transparent cuts of organic and inorganic material.
The optical elements are made of glass. The revolving nosepiece admits three objective lenses with different magnification: you can install any eyepieces with a rim diameter of 23,2 mm inside the eyepiece tube.Features:
Microscope for studies and hobby
All-glass optics
Simple and durable design
Sturdy metal body
Revolving nosepiece for three objective lenses
Abbe condenser with an iris diaphragm
Three light filters (blue, green, yellow)
Mechanical scale
Mirror illumination that does not require AC supply
The kit includes:
Microscope
Objective lenses: 4x, 10x, 40x
Eyepieces: 10x, 20x
User manual and lifetime warranty
Specifications
Head: monocular
Optics material: optical glass
Magnification, x: 40–800
Eyepiece tube diameter, mm: 23.2
Eyepieces: 10x and 20x
Objectives: 4х, 10х, 40хs (spring)
Revolving nosepiece: 3 objectives
Stage, mm: 110x120, with clips
Condenser: Abbe N.A. 0.65
Diaphragm: iris
Focus: coarse: 50mm; fine: 1,8–2,2mm
Body material: metal
Illumination: mirror
Filters: blue, green, yellow
Usage: General use product. May be used by kids over 3 years old.
Application: School Research
