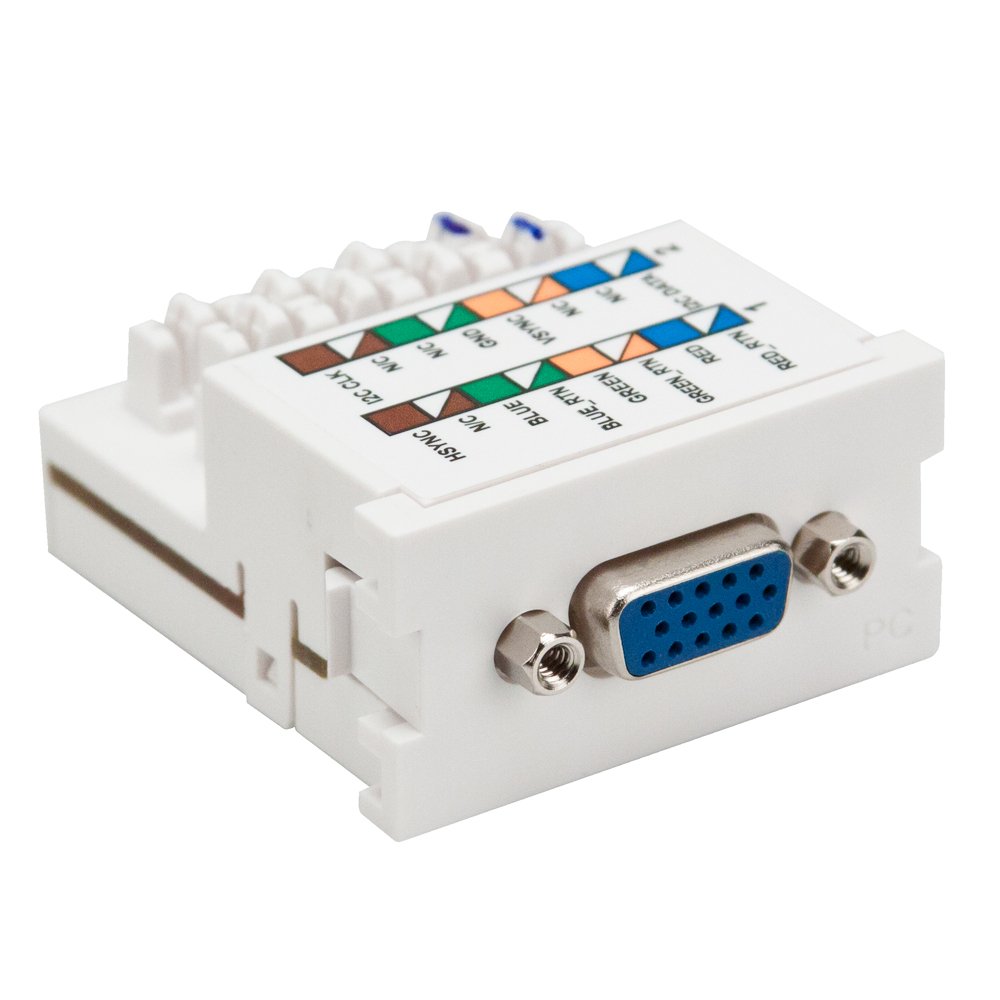

Leviton 41295-VMW VGA Monitor MOS Module, 110-Style Termination, White

Lebanon is pleased to introduce the new enhanced multi media outlet modules these are designed to provide a four the solutions to the mosque system the key advantage is that they connect using common cat 5e UTP cable or better this vga version supports distances between modules of up to 75 feet every VGA cable run must have a maust PC module on one end and monitor module on the other start by placing identification marks on both ends of the cables so they are not interchanged during termination remember to mark them far enough back so as to not lose the mark when stripping the cable strip the cables using a UTP stripping tool put the tool on the cable about 3 inches from the end and circle the cable twice now cut away the excess then untwist the wire pairs this will make it easier to push them into the IDC leave the twists intact to within about a half an inch of the IDC next push all t
