Description

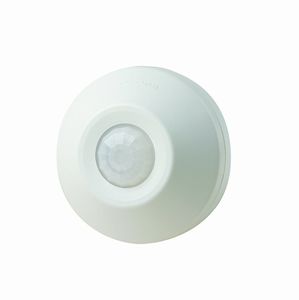

The Leviton ODC0S-I1W Ceiling-Mount Self-Contained Occupancy Sensor is the cost-effective choice for commercial and institutional spaces where traditional ceiling-fixture installation is difficult, inconvenient, or costly. Ideal for storage areas, small bathrooms, copy rooms, mop/sink closets, or small spaces without wall switches, this self-contained sensor will help reduce energy costs and it does not require an external power pack and will help reduce energy costs.

Automatic Lighting Control for Energy Savings
It's well-known that turning off the lights when leaving a room is one of the simplest ways to cut down on energy usage. Yet it's not always convenient or easy to remember, especially in rarely used storage spaces or rooms in which a variety of people are coming and going throughout the day.

The Leviton ODC0S-I1W Ceiling-Mount Self-Contained Occupancy Sensor helps eliminate this problem by providing automatic motion detection for lighting control. It has an adjustable 360-degree field of view and offers approximately 530 square feet of coverage when mounted at eight feet, reducing the number of sensors required in many spaces. It also offers an adjustable, delayed OFF time setting between 20 seconds and 15 minutes for maximum savings.

About PIR Technology
The ODC0S-I1W uses Passive Infrared (PIR) detection technology via a segmented Fresnel lens to monitor a room for occupancy. This specialized lens divides the field of view into sensor zones. When a person passes into or out of a sensor zone, the sensor detects motion and switches the lights ON. The lights will remain ON as long as there is an occupant in the room. When the space being monitored by the sensor is unoccupied for the preset time you've entered, the unit will switch the lights OFF.

Manual Override and LED Indicator for Easy Operation
For added convenience, the ODC0S-I1W offers an ambient-light override option that can be set between 0.5 and 500

Leviton ODC0S-I1W Self-Contained Ceiling-Mount Occupancy Sensor and Switching Relay, 1000-Watt, 120-Volt

Price is below average

Get price

Current Price

$54.99

Average

$63.97

Min Price

$36.49

Max Price

$90.51

Price dynamics

14%

Description

Manual Override and LED Indicator for Easy Operation
For added convenience, the ODC0S-I1W offers an ambient-light override option that can be set between 0.5 and 500

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

Ensure breaker is off before you start wiring. We are going to install an ODC20-MDW. To install power to the device, you will need three wires. White, Neutral Line, Black and Load, Red. The wires should be stripped three-quarters of an inch. To install switch or BMS interface, you need four low voltage wires. Two for switch interface and two for BMS interface. Wire these into the connector provided in the box. The low voltage connector connects at this location. Three easy wire terminals are provided for the power wiring. You need a slotted or Phillips screw driver to wire the sensor. Wire the Neutral first then the Line and then Load. Now insert the low voltage connector. Pull the coasters out. Choose the orientation you want the sensor to be based on your application. Push the unit so the screws come through the coaster. Push the coasters inside the unit. Tighten the screws so sensor
