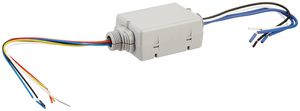

Leviton OPP20-D2 20-Amp Super Duty Power Pack for Occupancy Sensors, Basic with Auto-On, Manual-On and Local Switch Inputs, Gray

hi I'm Paul average from synergy electrical sales today I'm going to show you the basics of wired ceiling-mounted occupancy sensors their sensor that has a power pack and an occupancy sensor let me show you the basics they understand troubleshooting installation in specification as you're working with these just a basic overview alright so here's the basic components that we have we have both our power pack and our motion sensor let's look at the power pack first so we have our line voltage in and our Neutral and then if we're actually going to control our lights from this then we're gonna bring in one of the red wires brink connected to the hot and this would be our switch like out for the power packs the power pack in addition to just switching lights on and off creates low voltage which powers our motion sensor now different power packs can have different output voltages this is impo
