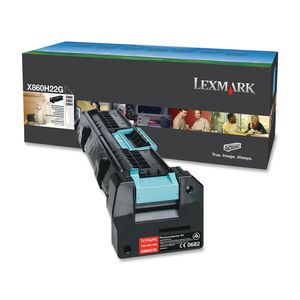

Lexmark X860H22G Photoconductor Drum Kit

with a screwdriver push the inside of the retaining bushing while slightly bending the cartridge wall out make attention it's easy to hurt yourself turn the bushing until the tabs are centered into the two slot of the cartridge wall from the inside of the cartridge with a screwdriver gently pry up the bushing the drive hub will come off with it remove the drum remove the charge roller the holdres and the springs will come out with the charge roller remove the two screws from the wiper blade remove the wiper blade the wiper blade is probably reusable clean out any waste toner It's better to use compressed air if possible use a toner workstation you can also clean the cartridge at open air do not breathe to dust it be careful not to damage the recovery blade that is located next to the wiper blade if the blade is bent in any way, the cartridge will leak clean the wiper blade with isopro
