Description

-Part Type Power Supply Board Unit

-Part Number EAY60908802

-Known Models 55LE5400-UC 55LE5500-UA 55LV5300-UA AUSZLHR 55LV5300-UB 55LX6500-UB AUSWLUR

-Substitute Part EAY60908801

We are here to help! If you're unsure of how to diagnose and troubleshoot the TV message or call us for more assistance before purchasing! We offer FREE PROFESSIONAL TECH SUPPORT. The only real way to properly troubleshoot / diagnose is by trial and error since there could be several boards that show similar symptoms and possibly more than 1 board not working. Sometimes the symptoms change. Be patient with questions from us and exchanges!

For help with first timers go on YouTube and search "TV Repair Tutorial"

*NOTE* LG & Vizio TVs must be plugged in for 5 minutes before it will turn on*

*For main board replacements check firmware upgrades online - We can not pre-install them*

1. Inspect ALL Ribbons and connectors. Any tears or bad connections between boards must be replaced FIRST

2. If you have any of these boards, it should be the first board to be replaced
A) T-Con Board - Video Problems (No Video with standby light on, audio but no video, grainy, distorted, or color problems in screen)
B) X or Y Buffer Board (Plasma TVs only) - Standby light is on but no power
C) Backlight Inverter / LED Driver - No Video with standby light on

3. Main Video Board
- Standby light is on but no power
- Either video or audio does not work (if no T-Con in TV. If audio but no video it is T-Con)

4. Power Board - No power AND standby light does NOT turn on. If standby light is on try other boards above

5. Panel - No power, distorted picture, lines, slow motion, half screen, faded in / out. Panel problems are usually not worth replacing the panel.

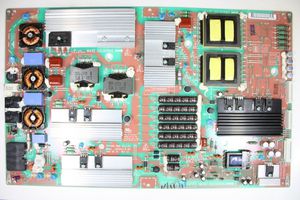

LG 55" 55LE5400-UC EAY60908802 Power Supply Board Unit

Get price

Current Price

$53.87

Average

$51.12

Min Price

$49.47

Max Price

$53.87

Price dynamics

Description

-Part Type Power Supply Board Unit

-Part Number EAY60908802

-Known Models 55LE5400-UC 55LE5500-UA 55LV5300-UA AUSZLHR 55LV5300-UB 55LX6500-UB AUSWLUR

-Substitute Part EAY60908801

For help with first timers go on YouTube and search "TV Repair Tutorial"

*NOTE* LG & Vizio TVs must be plugged in for 5 minutes before it will turn on*

*For main board replacements check firmware upgrades online - We can not pre-install them*

1. Inspect ALL Ribbons and connectors. Any tears or bad connections between boards must be replaced FIRST

3. Main Video Board
- Standby light is on but no power
- Either video or audio does not work (if no T-Con in TV. If audio but no video it is T-Con)

4. Power Board - No power AND standby light does NOT turn on. If standby light is on try other boards above

5. Panel - No power, distorted picture, lines, slow motion, half screen, faded in / out. Panel problems are usually not worth replacing the panel.

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

[Music] in this video we will show how to replace the board's included in this LG TV repair kit the board included in this kit are the mainboard the power supply and the t-con board this is a somewhat generic video and although there may be small differences from model to model if your TV model is listed in the video description then the general process of replacing these boards should apply to your TV it is recommended to take pictures during the repair process to use as a reference point be sure your TV is unplugged the first board we are going to replace is the power supply board I will start by disconnecting all of the cables and connections on the board I will remove all of the screws that hold the board to the TV panel I will slide by replacement board into position and then tighten it to the panel with the screws I will reconnect all of the cables and connections on the board the
