Description：
A new generation AIO Flight control for FPV, based on F405 MCU, using F405 MCU controls OSD over SPI bus in DMA mode, New version with 8PIN Sh1.0 Socket, could be much easier connect to our 4in1 ESC by one cable.
On v5, we added jumpers for Current source select, please read the manual and set the jumper before using the FC.
The omnibus F4 uses the MPU6000/ICM-20608 IMU over SPI for the super fast gyro updates (up to 32Khz) to keep up with the fast F4 MCU, allowing you to run your betaflight/iNav control loop insanely fast. This gives you the extra edge when racing your FPV quadcopter.

Features:
STM32 F405 MCU, Runs Betaflight 3.0 firmware
SBUS/PPM input (Pinheaders)
6PWM output (1-4Pinheaders and Sh1.0 Plug, 5-6 as Pinheaders)
Only 36x36mm, mount holes 30.5x30.5mm
INCL. BARO BMP280
SPI Sensor MPU6000
SDCard slot

Package Contents:

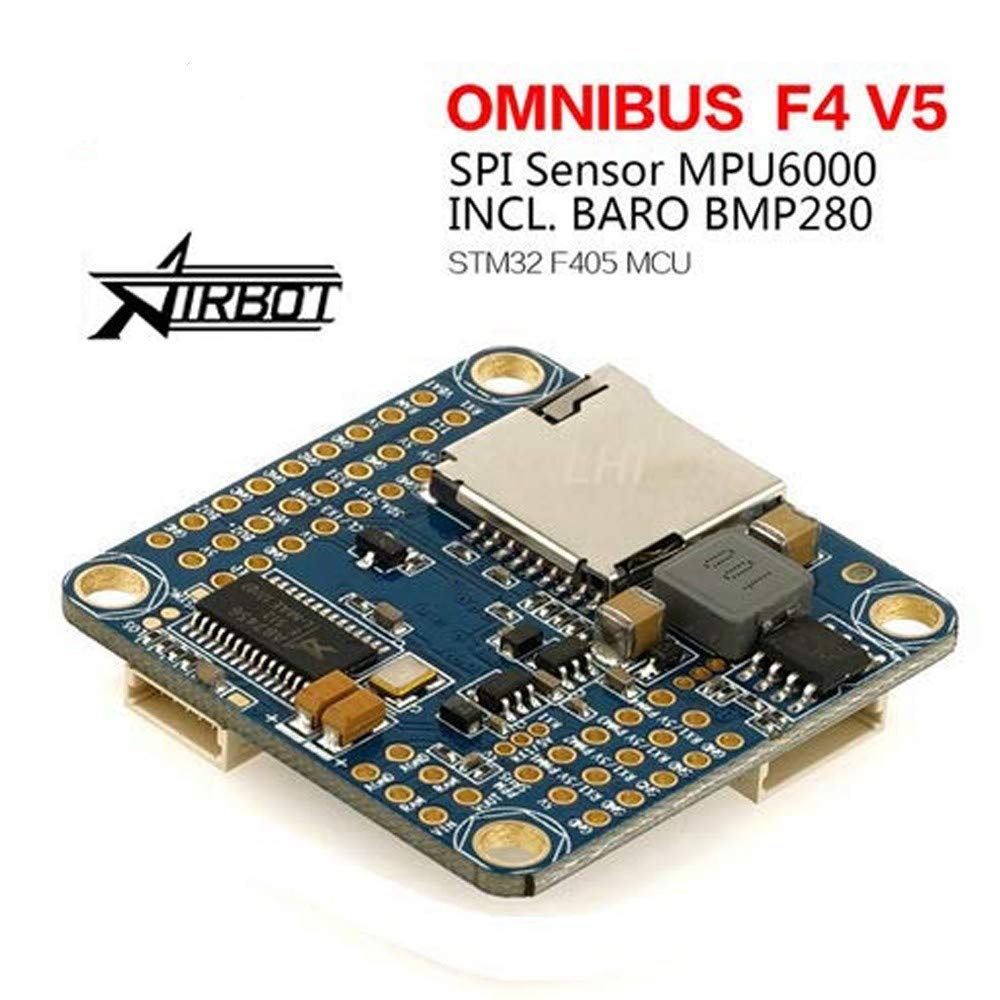

1 * LHI OMNIBUS FPV AIO F4 V5 Flight Controller
